Specifications
Brand Name :
PR or Pulier
Model Number :
SJ140/SJ150
Certification :
CE, SGS, UL
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD100000 to USD150000
Payment Terms :
T/T, L/C
Supply Ability :
100 set per year
Delivery Time :
40 to 60 days
Packaging Details :
Shipment Requested
Name :
Double Stage Single Screw Extruder
Capacity :
500kg/hr
Motor :
WNM, ABB, WEG, DAZHONG, CHINA Famous Brand
Gear Box :
Changzhou Guomao or Customerized
Application :
Squeezed Drying Film Flake
Screw and Barrel Material :
38CrMoAl or Bimetallic
Electrical Control :
Electrical Panel or PLC Touch Screen
Heating Way :
Electrical Heating
Cooling Way :
Force Cooling
Lubrication Way :
Force Lubrication
Quality Warranty :
12 Months
Aboard Service :
Installation and Commission
Operator :
1 or 2
Payment Wat :
T/T or L/C
Color :
White and Blue
Degassing number :
Triple degassing
Screen changer :
non-mesh filter
Description

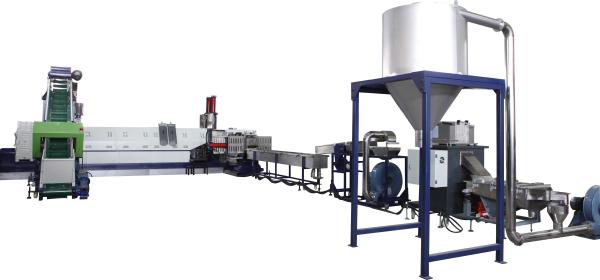

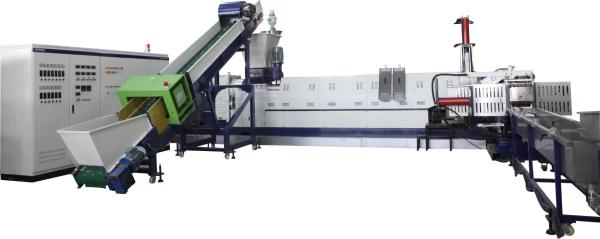

Automatic Double Stage Single Screw Extruder for Washed PE film
Applications of Squeezed drying film granulator:
Applicable plastic materials: PE, HDPE, LDPE,PP, etc
Material shapes: rigid flakes, agglomerated film,
Note: depending on different material properties, various downstream equipments are needed.
Plastic Pelletizing Line and Plastic Extruder
Features of film granulator:
Higher output, lower consumption, more automatic
Triple degassing for double stage extruder
Full automatic screen changer with much labor saving
Large capacity with low power consumption
20% more output than our first -generation products
15% less consumption than our first -generation products
2 labors operating the whole line
SJ series single stage pelletizing machine
Model SJ130/SJ140 SJ160/SJ180 SJ180/SJ200 SJ200/SJ200
Recycled Material Squeezed PP,PE films,HDPE bottle flakes,rigid ABS,PS,PC
Capacity (kg/hr) 500 800 1000 1500
Main Motor(kW) 132kW+37kW 185kW+45kW 200Kw+55kW 315kW+75KW
How it works
1.Belt conveyor uploading the material by timer
2.Feeder and extruder is controller by inverter,
3.Different L/D for different material
4.Nature degassing, vacuum degassing adopting for moisture
5. Non-mesh filter, single plate double position screen changer with ensure large filtering area
5. horizontal waster ring pelletizing way, vertical water ring pelletizing way, pull strip pelletizing way and underwater pelletizing way can be choosed
6. VOC system and automatic package system also can be equipped with customer need
Machine Detail Pictures
Double Stage Single Screw Extruder Automatic PE Film Washing System Electrical Heating
Double Stage Single Screw Extruder Automatic PE Film Washing System Electrical Heating
Double Stage Single Screw Extruder Automatic PE Film Washing System Electrical Heating
Double Stage Single Screw Extruder Automatic PE Film Washing System Electrical Heating
Double Stage Single Screw Extruder Automatic PE Film Washing System Electrical Heating
Model name SJ
output Plastic pellets/granules/resins/plastic raw material
Machine parts Side force feeder, main extruder, hydraulic screen filter, second stage extruder, hydraulic screen filter,pelletizing unit, cooling system, silo, cabinet
Recycling material washed PP/PE/LDPE/HDPE film, bag, fiber,flake
Capacity range 100kg/h to 1200kg/h
Feeding way Conveyor, roll driving system
Screw diameter 75mm to 200mm
Screw L/D 25 to 33
Screw raw material 38CrMoAl or bimetallic
degassing Natural degassing, vacuum degassing
Cutting type water ring pelletizing way, pull strip pelletizing
Cooling type Water cool, air cool
voltage Customized
Optional devices Metal detector, water cooling system, feeding silo, vibration system
Delivery time 40 to 60 days
Warranty time 13 months
Technical supports Machine layout, installation layout, engineer oversea service
certificate CE/ SGS/ TUV/ CO
