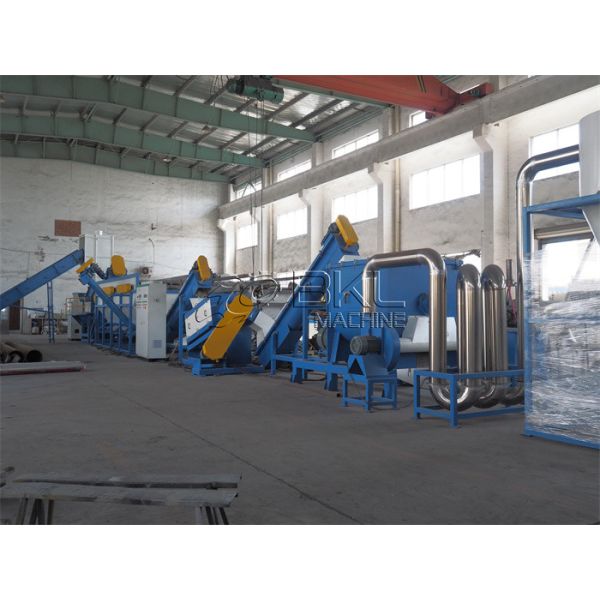

500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
500kg/Hr Plastic Recycling Equipment 100mm Pe Film Washing Line
Specifications
Brand Name :
BKL
Model Number :
BKL500
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 lines per year
Delivery Time :
60 working day
Packaging Details :
film
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Weight :
300-2000 kg
Final product :
clean flakes
Final flake size :
100mm
Color :
Red and black
Name :
ABS Washing Machines In Plastic Recycling Line
Raw material :
ABS
Material :
stainless steel
Description

ABS Washing Machines In Plastic Recycling Line

This unit is mainly for ABS plastic film: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and ABS after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.


We professionally manufacture plastic machinery and waste plastic washing production lines, ABS waste plastic film washing production lines, pipes and shape pipes production lines, and various auxiliary machines. Our products are more reasonable in design, more excellent in processing and more durable in usage.

Details:

S/N Item Requirement
1 Capacity: 500kg/hr
2 Raw material: Post-consumer ABS
3 Final Products: Recycled Clean flakes with below parameters:
Flakes size 100 mm
Moisture Content 1~3%
Total impurity 200ppm
4

Working condition:

Warehouse/workshop:

Straight line dimension: 32x3.5x4.5m

(also we can install the line as “U” or“L” shape)

Plant height: >5m Area: >500 ㎡

Power supply:Supply voltage: 3*380V+N+PE;

Voltage tolerance: +5%/-5%;

Control voltage: 24VDC+220VAC;

Frequency: 50HZ+-2%

Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine.

Air source: 0.6-0.8MPa

All water supplying and draining piping

Water supplying and water drain pools underground Water treatment system can buy optional

Steam supplying can buy optional to instead of electricity heating Other installation facility and tools

Sound proof for the crusher and other machines optional choose

5

Energy consumption:

Installed Power about:88KW

Actual consumption 88*70%=60KW

Consumption: 10 tons/h(Proposed water-treatment project)

Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply

Labor requests:2-3 persons.

Machine parts list:

NO Machine name Quantity Remark
1 Belt Conveyor 1set Necessary
2 Friction washer 2set Necessary
3 Wet Crusher 1set Material of blades: SKD-11
4 Lower Speed Friction Washer 1set Necessary
4 Floating Washer 2set Necessary
6 Screw Conveyor 1set Necessary
7 blower system 1set Necessary

Belt conveyor: conveying dirty plastic film or bags into crusher. If too much scrap iron, metal detector may be needed.

Crusher: crushing with water, cutting ABS or bags into small pieces.

Screw loader: load ABS flakes into the next step

High-speed friction washing machine: wash out the sand, soil and loading the material in ABS flakes

Washing tank: separate the sand, soil and other dirties from ABS

Horizontal dewatering machine: remove the water from the ABS flakes
