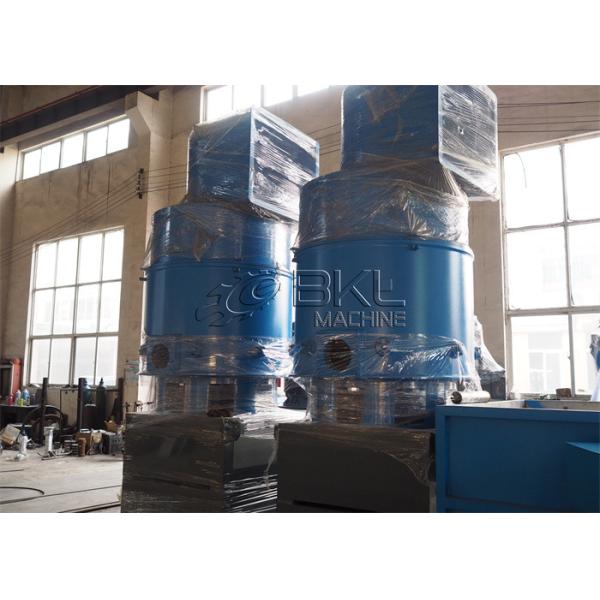

50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
Specifications
Brand Name :
BEAKELAND
Model Number :
BSL500
Certification :
CE
Place of Origin :
JIANGSU,CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
80 SETS/YEAR
Delivery Time :
15~35 WORKING DAYS
Packaging Details :
Wooden case packing for LCL shipment, Film wrap packing for FCL shipment.
Name :
Plastic Agglomerator
Application :
Recycle big volume plastic to heavy bubble material
Funtion :
Compactor film/Raffia/fiber/cloth to granulas
Motor Power :
90-110KW
Fixed Knife :
8 pcs
Rotory knife :
4 pcs
Material of blades :
T10
Caoacity :
50-1000kg/h up to material types
Plastic types :
PP PE PET PS PVC film sheet fiber ropes ect
Keyword :
Fiber Cloth Agglomerting Machine
Description

Plastic Fiber Cloth Agglomerting Machine Plastic Agglomerator

Description:


The BSL serial Plastic Agglomerator is used for the recycling of soft material and process before pelletizing.

The agglomerating machine mainly used for cutting and recycling thermoplastic films and chemical fibers, such as PP/PE/LDPE/HDPE/PET/PVC/PS sheet/ film and so on. It could turn waste thermoplastic thin film(thickness ≤2 mm)to granula shapes after processing. The application field could be wastes or thin film of soft polyvinyl chloride (PVC), high and low-pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.

The Machine main function: Crushing and Compacting thin and flex material to more heavy bubble granulas which could be feed to pelletizing feeder with more higher capacity.

Option parts:

  • With hopper suitable for feed by Conveyor
  • Conveyor for material feeding more fast and automatic
  • Auto water flushing system

Machine parameters:

Model Volume(L)

Effective

Volume(L)

Mainshaft

Speed(rpm)

Capacity

(kg/hr)

Heating

Method

Discharge

Method
BSL-100 100 75 800 80-100

By self

friction

Manually or

Pneumatic
BSL-200 200 150 800 150-200
BSL-300 300 225 800 250-300
BSL-500 500 375 750 300-400
BSL-800 800 600 750 500-600
Material of inner barrel: Stainless steel 304

Application Materials:

PE (HDPE LDPE)PP PET PVC PS
Material shapes: film, bag, (PE, PP) regrind,fiber,rope, cloth,silk, Woven ,Non-wonven,Packing materials
Material types: rolls, loose, bundled

Working principle:

When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.

More photos:

50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine50-1000 kg / h Raffia Fiber Cloth Silk Rope Plastic Agglomerator Machine
