Dual Face High Precision 3m Manganese Levelling Staff Rods for Leica Digital Level DNA and LS and Optical Level

Model: MSLD3

Specification:

Manganese Leveling Staff Introduction:

Leosurvey high precision Manganese levelling staffs are used for Third-order and Fourth-order leveling. The levelling body is made of aluminum alloy material, which assures less possibilities of transformation during using. Additionally, light weight body helps the users to carry and perform easily.

The levelling tape is made of Manganese Steel (Specification is 0.4×33mm). The coefficient of thermal expansion of Manganese Steel is (10.6~12.2) ×10-6/℃/M. Small coefficient of thermal expansion and extra 3-kilogramme pulling force added at the top of levelling tape, make sure less external influence during the process of using.

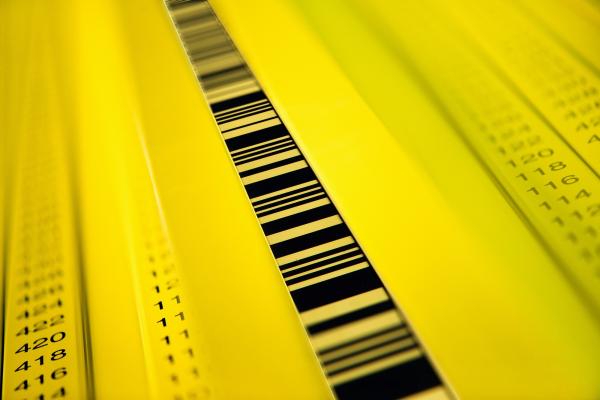

Currently, regular optional lengths are 2 meters and 3 meters . Front face barcode tape can be used for digital levels and back face can be used for optical levels. We can customize the staff with your requirements.

Manganese Staff Features:

1. Staff tape is made of high quality Manganese steel. The coefficient of thermal expansion is very small (10.6~12.2 ×10-6/℃/M)
2. Superior graduation accuracy and high quality image of stripes.
3. Body of the staff made of rigid aluminum profile with anodized surface. It makes sure it is not easy to get deformed in the process of measurements and very convenient to carry.
4. The tape seated in a protection groove of staff profile and tensioned by soft spring to compensate extension coefficient of staff profile.
5. Foot plate of 304 stainless steel; hardened, smooth and ground.

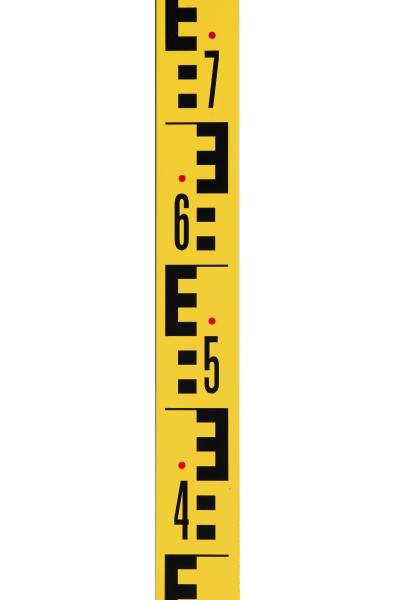

6. Double face marking system; can be used for digital levels and optical levels

7. Equipped with circular bubble and handles. Handles zinced and powder-coated

Package: 2pcs/aluminum Case; With extra outer carton box

Detailed Pictures:
