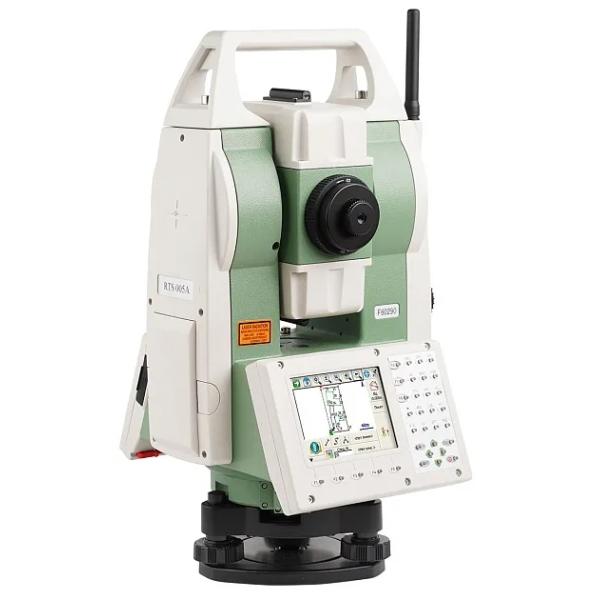

FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
FOIF Survey Grade Self-learning RTS005A Robotic Total Station
Specifications
Brand Name :
FOIF
Model Number :
RTS005A
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5~8 working days
Packaging Details :
Box Carton
Angle Accuracy :
0.5''
Dectecing Method :
Four Probe
Reflectorless Range :
1000m
Reflective Sheet Range :
1200m
Single Prism Range :
6000m
Time for Fine Mode :
less than 0.7s
Magnification :
30X
Image :
Erect
Shortest Focus Distance :
1.0m
Display Size :
3.5 inch
Color Display :
YES
Dual Display Screen :
YES
Resolution of Display :
320*240
Compensatory Type :
Dual axis
Laser Plummet :
635nm Semiconductor Laser
ART Working Range :
1000m
Positioning Time :
3~4s
Battery :
7.4v 5.8ah lithium
Operating Time :
5~8 hours
Software :
WINCE7.0
Data Interfaces :
Support U Disck
USB :
YES
Bluetooth :
YES
Dustproof and Waterproof Grade :
IP55
Description

FOIF Survey Grade Self-learning RTS005A Robotic Total Station

FOIF Survey Grade Self-learning RTS005A Robotic Total Station
Item Introduction
RTS005A is a domestic fully-automatic total station launched by FOIF in 2018. It integrates automatic aiming, automatic target recognition, high-precision angle measurement, high-speed ranging.
It is equipped with a stable and reliable Wince system, which can be widely used in automatic deformation monitoring, automatic settlement monitoring, automatic shaft measurement, automatic bridge monitoring and other fields. It has been verified by a variety of different projects, and proved to be the cornerstone of China's automated measurement field.

Features:
High-precision survey: self-developed 4CCD absolute encoder, high-precision angle measurement; Self-developed EDM head, high-precision ranging, ultra-long distance measurement range;

Auto aim technology: automatic aim, automatic target search, automatic target tracking;

Servo technology: precision DC motor, high-resolution endless drive technology, high-precision positioning;

Windows CE system: equipped with various measurement programs, which can meet all the measurement needs of customers and support user self-compilation programs;

Bluetooth, RS232 communication: to meet the customer's remote command control needs;Extensive market verification: After verification of different projects, it has been widely used in automatic deformation monitoring, automatic settlement monitoring, automatic shaft measurement, automatic bridge monitoring and other fields, reliable and stable

Applications:
Bridge Engineering Construction
Tunnel Construction
Emergency and Fire Protection Service
Water Conservancy Facilities Construction
Inspection of Building Facilities
Three-dimensional Industrial Measurement
Deformation Survey of Foundation Pit
Ship Building Survey


Specifications

RTS005A Robotic Total Station
BrandFOIF
ModelRTS005A
Angular Measurement
Angle Measurement Accuracy0.5’’
Measuring MethodAbsolute Encoder
Detecting MethodFour-probe
Min. Display0.1"
Distance Measurement
Reflectorless Range1000m
Reflective Sheet Range1200m
Single Prism Range6000m
Reflectorless Accuracy3mm＋2ppm
Reflective Sheet Accuracy2mm＋2ppm
Single Prism Accuracy1mm＋1ppm
Time for Fine Mode＜0.7s
Telescope
Magnification30X
ImageErect
Resolution3”
Field of View1°30’
Shortest Focus Distance1.0m
General
Display and Keyboard3.5-inch; Resolution 320 x 240;Color; Touchscreen; Double Displays; Backlight Illumination+Auto Sensitivity
Compensator

Type: Dual-axis
Range: ≥±3′

Level Vial

Plate level:30″/2mm
Circular level:8′/2mm

Laser Plummet

Type:635nm semiconductor laser
Accuracy:±1mm/1.5m
Spot:≤2.5mm/0.5~2m

ATR

Working range:5～1000m
Positioning accuracy:±1.5mm(≤200m); ±1.5 " (>200m)
Positioning time(in the field of view of telescope):3-4S

Endless Drive1 horizontal, 1 vertical
Power

Battery: 7.4V 5.8Ah lithium battery
Operating Time: 5~8 hours

Software SystemOS: WINCE7.0
Data Interfaces/CommunicationSupport U disk, RS232C, USB, Bluetooth
Dustproof and waterproof gradeIP55(IEC60529)
Working Temperature-20℃ ～+50℃
Storage Temperature-40℃ ～+60℃
