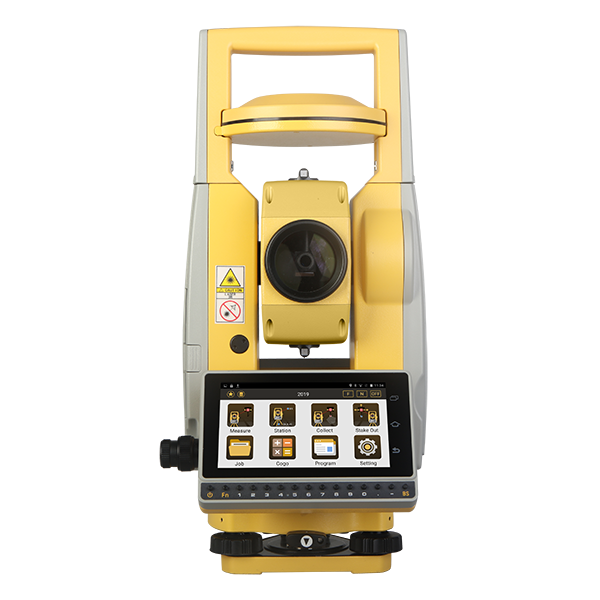

South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen
South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen
South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen
South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen
Specifications
Brand Name :
South
Model Number :
Navi Station
Certification :
ISO
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
T/T
Supply Ability :
100 pieces per month
Delivery Time :
3~5 Work Days
Packaging Details :
Carton
Model :
Navi Station
Image :
Erect
Magnification :
30X
Single Prism :
5000m
Reflectorless :
2000m
Accuracy :
±1.5mm at 1.5M Instrument Height
Prism Accuracy :
±(2+2ppmxD)mm
Measure Interval :
Fine: 0.3s, Tracking: 0.1s
Compensator :
Liquid, Dual Axis Compensation
Battery :
Li-ion Rechargeable
Output Voltage :
7.4V DC
Operation Time :
10 Hours
Condition :
NEW
Dual Screen :
YES
Connections :
USB, RS232, Bluetooth
Waterproof and Dust Proof Grade :
IP55
Display :
TFT LCD Screen, Graphics, 720*1280
Dimension :
200mm*170mm*350mm
Weight :
5.7kgs
Microphone / Speaker :
Available
WLAN :
Dual-Band Single Stream 802.11 a/b/g/n RF for Data Link
Bluetooh :
4.0
Network :
2G 3G 4G
Single Point Positioning :
Single: H≤3m, V≤5m (1σ, PDOP≤4)
RTD Surveying :
H: ±0.5m, V: ±1.0m
Static Surveying :
H: ±(2.5mm+1ppm x D), V: ±(5mm+1ppm x D)
Real-time Kinematic Surveying :
H: ±(10mm+1ppm x D), V: ±(20mm+1ppm x D)
Time to First Fix :
Cold Start <50s, Warm Start <45s
Signal Re-acquisition :
<3s
RTK Initiation Time :
<15s
RTK Initiation Reliability :
>99.9%
Signal Tracking :
BDS-2: B1, B2, B3 GPS: L1, L2C, L2P, L5 GLONASS: L1, L2 GALILEO: E1, E5a, E5b SBAS
Satellite Tracking :
574 Channels
Internal Memory :
RAM: 3GB; ROM: 32GB
Processor :
MT6753
Operating System :
Android 6.0
Laser Plummet Type :
Laser Class 2/IEC60825-1; 4 Brightness Level
Plate Vial :
30"/2mm
Circular Vial :
8'/2mm
Telescope Reticle :
Illuminated, 4 Brightness Level
Focusing Range :
1.2m
Field of View :
1°30'
Resolving Power :
3”
Effective Aperture :
45mm (EDM:50mm)
Telescope Tube Length 154mmTube Length :
154mm
Compensator Range :
±4'
Compensator Setting Accuracy :
1”
Display Resolution :
0.1”
Diameter of Encoder Disk :
79mm
Measure Method (HZ/V) :
Absolute Continuous, Diametrical
Description

South Survey Total Station Navi Station with Integrated GNSS 2000m Reflectorless EDM Accuracy 2’’ 5.0 inch touch screen

Brand: South
Model: Navi Station

Navi Station Total Station Highlights:

● Fully Integrated GNSS

● Simply Setup the Station Wherever You Want

● Without the Limitation of Known Points

● Up to 2000m Reflectorless EDM

● Cable-free Connection by Bluetooth

● Intelligent Workflow under Android 6.0

Introduction:
Features Android O.S, Navi Station provides an intelligent solution that integrates GNSS receiver on Total Station. Simply setup and determine the position of occupied point by GNSS receiver to centimeter accuracy, among the range of 40km from a reference station.
Navi Station allows you to work quickly and effectively right from the beginning.

Features:

  1. Dual Laser EDM

2000m Non-prism
Stronger return signal due to its dual laser technology

  1. Stable Measurement

Accuracy: 2+2ppm
Extremely fast (0.3s) speed under fine mode

  1. USB OTG, TF Card and Bluetooth

Flexible transfer of data via PC or PDA WLAN & 4G Module
Quick access to internet

  1. 5.0 inch Color and Touch Screen

Built-in high resolution display numerical keypad
Faster and easier input of data

  1. Intelligent O.S

Android 6.0 O.S
User friendliness
Free SDK package for developer

  1. All Constellations

Enable the satellite tracking from BDS, GPS, GLONASS and Galileo with 574 channels
Horizontal: 10+1ppm
Vertical: 20+1ppm

Total Station Accessories:

1. Instrument
2. Batteries
3. Battery charger
4. Communication cable
5.. Tool kit
6.. Rain protection bag
7. Instruction manual
8. Carrying case

Battery in Total Station

  1. Mounting the battery

Insert the battery by aligning the battery pack’s tenon with the notch in the instrument, press the battery clamp and push the top of the battery pack until you hear a click.

  1. Removing the battery

Press the battery clamp and remove the battery pack by pulling it toward you.

  1. Battery Indicator

Battery power display indicates the power condition. You should recharge or replace the battery when you hear the continue buzz. Please turn off in the normal way in order to save the data. Please find the battery operating time on specifications.

Recharge in Total Station

  1. Plug the charger on 100-240VAC (50-60Hz) power supply, the red lamp lighting.
  2. When recharge is complete, the light become green. Normally, it will take about 3~4 hours.

Caution: For indoor use only.
Note:

  1. The new battery (or not the used for long time) need to recharge and discharge for several times, the battery could become the good performance for using. Please recharge more than 10 hours.
  2. Please prolong charge 1~2 hours after green lamp lighting to reach the best performance.
  3. Lamp situation:

Red lamp lighting--charging;

Green lamp lighting--charge complete

Red lamp flash—waiting, not connecting or battery defective.

  1. If the red lamp flashes when plug the charger, please remove the charger and wait a minute to plug it again.
