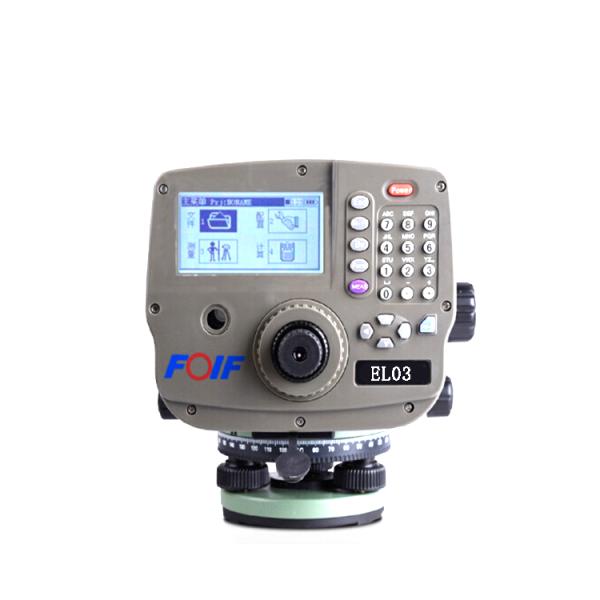

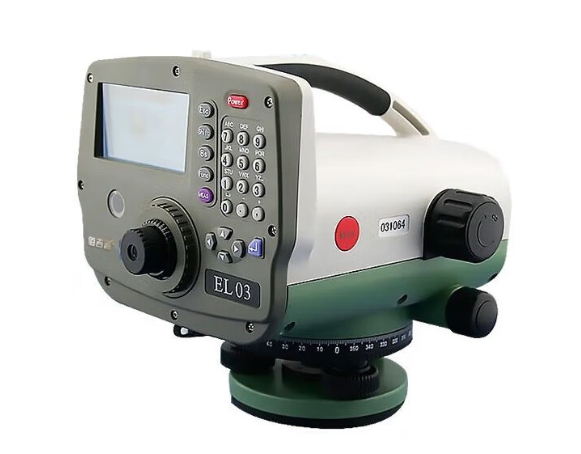

Surveying Instrument High Precision Digital Level 0.3mm Accuracy 24 keys with LCD screen for leveling

Description:

FOIF brand EL03 digital level adopts the international mainstream software design, optimizes the line measurement, and strictly follows the grade measurement specification process, so that the level measurement work is simple and efficient, and is suitable for all level measurements of the first class and below. Its digital measurement method not only has excellent performance and easy operation, but also can greatly improve the measurement efficiency.

FOIF EL03 Digtal Level Features:

1. The round-trip horizontal observation accuracy per kilometer is 0.3mm, and the minimum reading is 0.01mm;

2. Large graphical LCD screen, easy to operate and easy to learn, can quickly obtain high-precision elevation information;

3. Add numeric keys and function keys (24 keys) to quickly input valid information;

4. Advanced photosensitive reading system, visible white light can be measured;

5. Comfortable hand-held handle design, easy to carry in the field;

6. Large-range automatic compensation, high leveling accuracy;

7. The digital reading system effectively reduces errors and repetitive operations, automatically records measurements, completely eliminates the interpretation errors of manual readings, and can easily generate reports and improve work efficiency;

8. Diversified data export methods, can be quickly exported through USB cable or SD card, exporting data is more convenient;

9. Equipped with measurement trigger key, after aiming at the staff, you can quickly start the measurement;

10. Support single-point measurement, multiple line measurements, positive/reverse staff mode switching, intermediate point measurement, stakeout, continuous measurement line adjustment function, and the horizontal network adjustment function can be realized in the post-processing software;

EL03 Level Application:

1. Leveling net measurement

2. Deformation monitoring and land subsidence monitoring

3. Industrial measurement

4. Tunnel and mine surveys

5. Topographic survey, leveling line survey, area leveling survey, leveling net survey, contour line survey

6. Road and railway construction stakeout, longitudinal section measurement, cross-section measurement, elevation stakeout

Specifications:

• Range: 2-110 m
• Time for single measurement: ≤ 2s
• LCD display with illumination
• Alphanumeric keyboard
• Automatic height and delta height calculation
• Optical reading is available
• Internal memory (3000 points) or SD card for data storage, supports USB and RS-232C ports and Bluetooth (EL03) for data transfer

• For measuring range: ≤110m
• Accuracy EL03: Electronic ≤ ±0.3mm, Optical ≤ ±1.5mm
• Reliable reading, even in dim light condition
• Remote control measurement by Bluetooth (EL03)
• Onboard programs, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate
• LCD display presents all important measured data at a glance and shows the next step to take
• Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
• Quick height and distance result-the reading is displayed almost instantly with measurement
