Sillimanite, mullite, corundum-mullite products have good thermal shock resistance,corrosion-resistance and scouring-resistance of glass melt,Less pollution to glass melt.
It is the most commonly used refractory material in glass industry feeder machine, tube drawing machine and other equipment at home and abroad, which can significantly improve production efficiency.

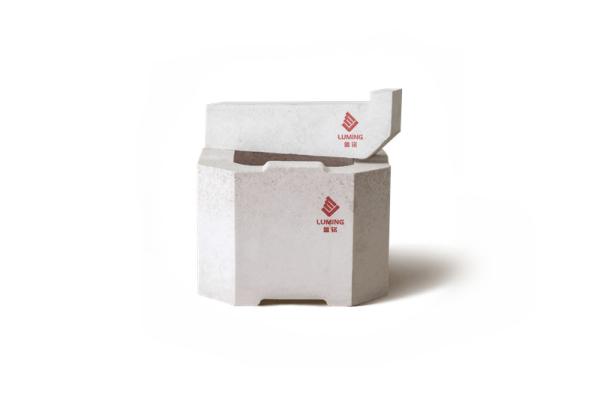

Products:Forehearth block,rider arch block,cover plate block,etc,Hundreds of specifications.
Corundum-mullite brick refers to a high aluminum refractory product composed of corundum and mullite main crystal phase, and the load softening temperature is greater than 1700 °C. It has good high temperature strength, high temperature creep resistance, thermal shock resistance and erosion resistance.
Item | Pouring Corundum-Mullite brick | |
CCM-80 | CCM-85 | |
Al2O3, ≥% | 80 | 85 |
Fe2O3, ≤% | 0.5 | 0.5 |
Bulk Density, ≥g/cm³ | 2.7 | 2.7 |
Apparent Porosity ,≤% | 22 | 21 |
Compressive strength, ≥Mpa | 75 | 80 |
0.2Mpa Refractoriness under load, ≥℃ | 1650 | 1680 |
Thermal shock resistance(1100℃water-cooling)Times, ≥ | 20 | 20 |
Item | Corundum refractory brick |
C-99 | |
Al2O3, ≥% | 99 |
Fe2O3, ≤% | 0.1 |
Bulk Density, ≥g/cm³ | 3.2 |
Apparent Porosity ,≤% | 16 |
Compressive strength, ≥Mpa | 100 |
0.2Mpa Refractoriness under load, ≥℃ | 1700 |
Contact us:0086-18905335290
Characteristic:
Good thermal stability
Perfect molten Slag corrosion resistance
Excellent glass liquid corrosion resistance
High temperature performance
High temperature abrasion resistance
High Refractoriness under load
High Hardness
Excellent chemical stability
High Temperature Resistance and Perfect Thermal Shock Resistance
Excellent Corrosion resistance
High Strength
High Refractoriness
Excellent Chemical Corrosion Resistance
High Compressive Strength
Low Thermal Expansivity
Application:
Iron and steel industry,
non-ferrous metals,
building materials industry,
glass industry,
petrochemical industry,
electric power industry
machinery manufacturing industry
pellet, lime, calcined dolomite, ferroalloy, lithium salt, chemical and other rotary kilns
Corundum mullite bricks are widely used as lining bricks in industries such as petroleum, chemical, non-ferrous metals, and steel.
Mainly used for high wind temperature hot blast furnaces, blast furnaces, coke ovens, incinerators, boilers, decomposition furnaces, heat treatment furnaces, metallurgical furnaces, smelting furnaces, converters, electric furnaces, glass furnaces, blind corner linings for petroleum fracturing systems, gasifiers, synthetic ammonia secondary conversion furnaces, carbon black reaction furnaces, magnetic material gas furnaces, ultra-high temperature tunnel kilns, and as ceramic firing kiln furnitures. Corundum mullite bricks can also be used in catalytic cracking reactors High temperature reactor cooling devices such as heat exchangers and other thermal equipment linings. It can also be used as a high-temperature corundum mullite sagger, etc.
