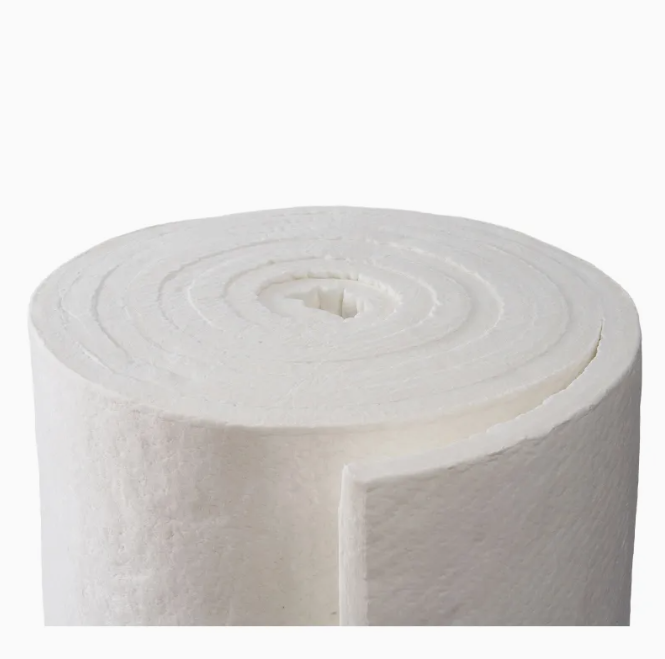

Insulation Thermal Fireproof Refractory Ceramic Fiber Blanket for Industrial Furnace
Insulation Thermal Fireproof Refractory Ceramic Fiber Blanket for Industrial Furnace
Insulation Thermal Fireproof Refractory Ceramic Fiber Blanket for Industrial Furnace
Insulation Thermal Fireproof Refractory Ceramic Fiber Blanket for Industrial Furnace
Specifications
Brand Name :
LUMING
Model Number :
GYML-1
Certification :
ISO9001, Patents,Work safety standardization certificate
Place of Origin :
CHINA
MOQ :
5 metric tons
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
more than 120,000 metric tons per year for all refractory materials castables ,precasts and bricks
Delivery Time :
5-45day，On-demand customization
Packaging Details :
Carton or wooden box
Model NO. :
ceramic fiber blanket
Shape :
Ceramic Fiber Blanket
Kind :
Ordinary Ceramic Fiber
Feature :
Good Mechanical Strength
Type :
Heat-Resistant Material
Origin :
China
Chemical Composition: :
Al2O3.SiO2
Manufacturing Technique :
Spray Silk Rug
Refractoriness :
1580
Temperature :
1260c, 1350c, 1430c
Description

Ceramic fiber blanket is manufactured by refractory ceramic fibres, providing effective solutions to a wide range of thermal management problems. Utilizing our proprietary high output blowing and spinning techniques, these products supply superior insulating performance, flexibility and resilience.

Features Of Ceramic Fiber Blanket
  • High tensile strength
  • Excellent mechanical strength and structural strength
  • Low thermal conductivity, low shrinkage, low density
  • Excellent thermal capacity
  • Good sound absorption
  • Good thermal shock resistant

Applications Of Ceramic Fiber Blanket

  • Annealing furnaces
  • Furnace door linings and seals
  • Soaking pit covers and seals
  • Furnace hot face repairs
  • Reheating furnace and ladle covers

Specifications Of Ceramic Fiber Blanket

  • Alumina contents range from 40% to 55%
  • Widely used throughout metallurgical industry
Brand
Properties		 ST BLT GC BLT HA BLT HZ BLT PC BLT
Specification Temp. (ºC) 1260 1260 1360 1430 1600
Working Temp. (ºC) 1050 1100 1200 1350 1500
Bulk Density (kg/m3) 64-160 64-160 64-160 64-160 96/128
Linear Shrinkage after Heating
@24H(%)		 -3
(1000ºC)		 -3
(1100ºC)		 -3
(1250ºC)		 -3
(1350ºC)		 -1
(1400ºC)
Thermal Conductivity(w/m.k) 0.09(400ºC)
0.17(800ºC)
0.32(1000ºC)		 0.09(400ºC)
0.17(800ºC)
0.31(1000ºC)		 0.09(400ºC)
0.13(600ºC)
0.22(1000ºC)		 0.09(400ºC)
0.76(600ºC)
0.22(1000ºC)		 0.16(600ºC)
0.28(1000ºC)
0.45(1400ºC)
Tensile strength (MPa) 0.05 0.05 0.06 0.06 0.08
Chemical
Composition(%)		 Al2O3 43 44 51 35 71
Al2O3+SiO2 96 98 99 - -
ZrO2 - - - 13-15 -
Fe2O3 1.0 0.5 0.2 0.2 0.2
Na2O+K2O 0.5 0.3 0.2 0.2

0.2
