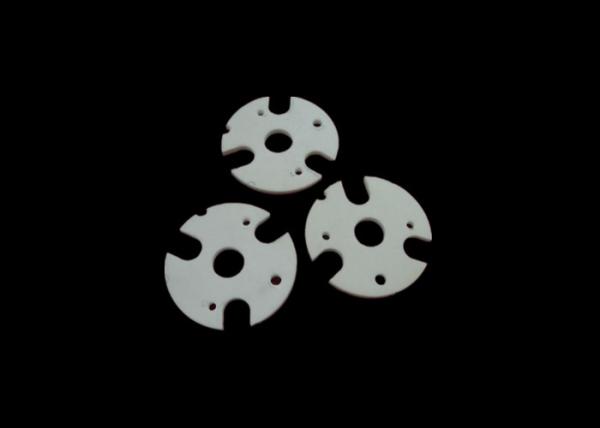

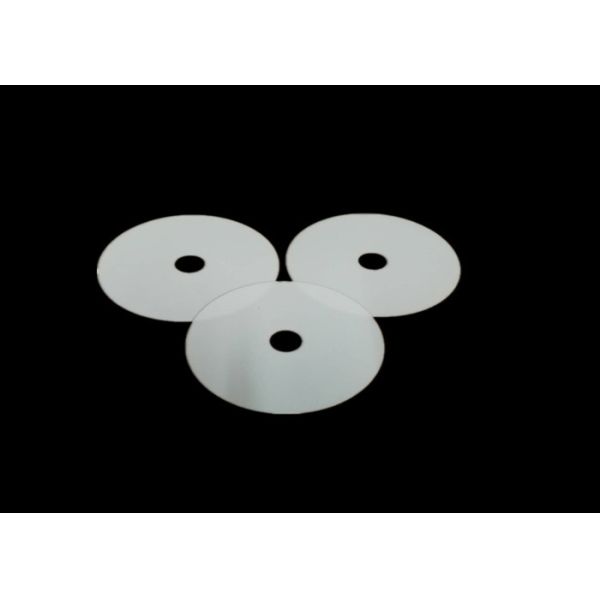

High Precision Aluminium Oxide Ceramic , Insulating Resistance Alumina Ceramic Substrate
High Precision Aluminium Oxide Ceramic , Insulating Resistance Alumina Ceramic Substrate
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP6-1-2-2
Certification :
SGS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Shape :
Round
Density :
>3.8g/cm3
Size :
Customized
Thermal Conductivity(W/m.K)) :
22.3
MOQ :
100PCS
Name :
High Precision insulating resistance alumina ceramic substrate
Description

1. Description

Alumina ceramic part is made from the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance, but relatively low strength and fracture toughness. Alumina ceramics are generally white but may also be pink or ivory. The color is derived from either the sintering additives or impurities in the raw materials.

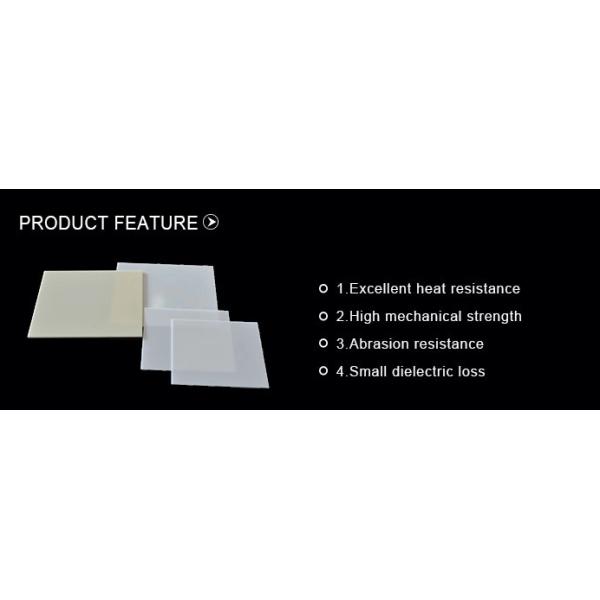

2.Advantages:

High Precision Aluminium Oxide Ceramic , Insulating Resistance Alumina Ceramic Substrate

3.Performance

Items Unit 95%Al2O3 99.5%Al2O3
Density g/cm3 3.7 3.9
Flexural Strength MPa 313 340
Compressive Strength MPa 3400 3600
Modulus of Elasticity GPa 350 380
Impact Resistance MPa·m1/2 4 5.1
Weibull Modulus m 10 10
Vickers Hardness HV0.5 1800 1900
Thermal Conductivity W/mk 24 27
Highest Application Temperature °C 1600 1750
Volume Resistivity at 20°C Ω.cm20 >1014 >1014
Dielertric strength KV/mm 20 25
Thermal expansion X10-6/K 5.0-8.3

5.4-8.3

High Precision Aluminium Oxide Ceramic , Insulating Resistance Alumina Ceramic Substrate

Product tags

alumina ceramic substrate

,

96% al2o3 ceramic substrate

,

99.6 alumina ceramic substrate
