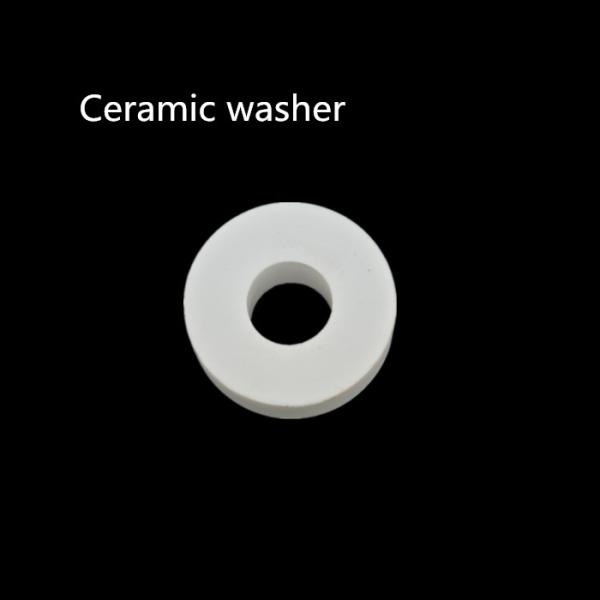

High Hardness Custom Alumina Ceramic Washer Ring For Insulation
High Hardness Custom Alumina Ceramic Washer Ring For Insulation
Specifications
Brand Name :
KAMTAI
Model Number :
KTALW1
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
High Strength and good insulation Alumina ceramic washer for insulation usage
Material :
95% Alumina ceramic
Size :
Customize
Bending Strength :
450Mpa
Type :
Ceramic ring
Description

High Strength and good insulation Alumina ceramic washer for insulation usage

1. Description

Alumina ceramic product is produced by alumina as the main material, through the forming, high temperature sintering has good heat resistance, high performance, good compression wear-resisting performance , high insulating strength, high mechanical strength, thermal expansion coefficient little etc
Widely used in electronics, electrical equipment, instrument and apparatus, household appliances, electric vacuum device, communication equipment, temperature control switch, high-grade ceramic valve, faucet move sliding-vane, and other industries for precision components use and in the media with grinding and polishing

2. Main Features

1. Material:alumina ceramic
2. Using many fine technology such as dry press molding and isostatic press molding.
3. High strength,high hardness,resist to high temperature, wearing and corrosion.
4. It can do a good job under mang bad conditions such as high temperature,high pressure , vacuum, inflammable, explosive,acid,alkali,steam,non-lubricated environments.
5. Preventing material from contamination because of its extreme low wear rate.
Application:Materials for grinding and dispersed,structural ceramics,electronics,refractory ceramics,magnetic material,metallurgy,medicine,food,cosmetics,textiles,printing and dyeing,pigment and other industries.

3. Specification

Item
Unit
95% Alumina ceramic
99% Alumina ceramic
Bulk density
g/cm3
>3.6
3.89
Max use temperature
℃
1500
1700
Water absorbtion
%
0
0
Bending Strength
Mpa
364
450
Expansion (25-800°C)
(X10-6/°C)
7.6
8
Thermal Conductivity
(W/(m.R))
20
35
Dielectric Strength

(kv/mm)
11
12

High Hardness Custom Alumina Ceramic Washer Ring For Insulation
