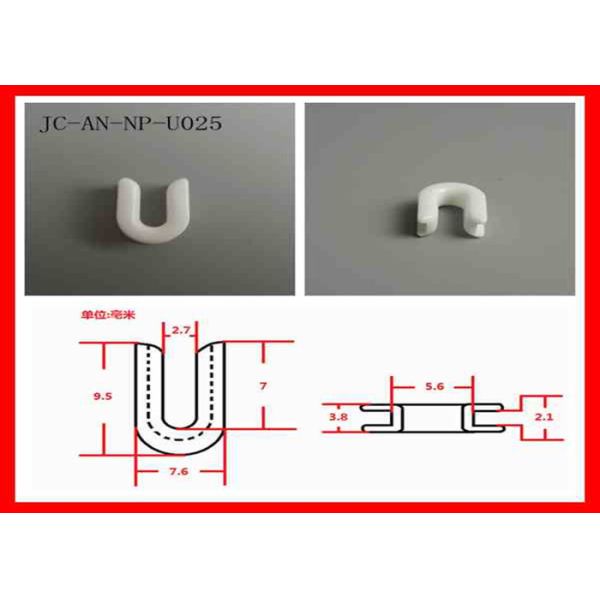

Red / White Aluminum Oxide Ceramic Eyelets For Industrial Textile Ceramic Parts
Red / White Aluminum Oxide Ceramic Eyelets For Industrial Textile Ceramic Parts
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC10
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Density :
＞3.7g/cm3
Name :
High strength Textile ceramic eyelets for industrial Textile ceramic parts
Tensile Strength @ 25 C :
＞200
Flexural Strength @ 25 C :
＞276
Color :
Red and White
Usage :
Industry
Description

High strength Textile ceramic eyelets for industrial Textile ceramic parts

Textile Ceramic
Product Category: ceramic products
Product Features:
Ceramic porcelain eye by the precision ceramic processing, ultra-fine polishing up to Ra0.2, due to high hardness, smooth surface, enameled wire sliding in its smooth surface from damage.

Detailed Product Description:
Uses: Suitable for all kinds of winding machine and textile machinery in the wire cross-wire components. By the precision ceramic processing, ultra-fine polishing up to RA0.2.

Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N		 (11.7) 1196
79		 (12.5) 1276
77		 (14) 1428
85		 (15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1

30.7

 31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C		 7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm		 1 X 10-13
1 X 10-8		 1X 10-13
2.2 X 10-9		 1 X 10-13
6 x 10-7		 1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils		 ac volts
per mil		 350
340		 335 330
Dielectric Constant 1Mhz
@25C		 e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C		 Tan Delta .0004

.0003

.0003

 .0002

Red / White Aluminum Oxide Ceramic Eyelets For Industrial Textile Ceramic Parts
