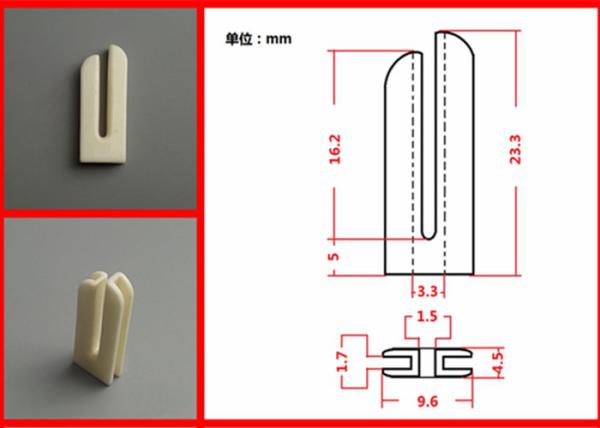

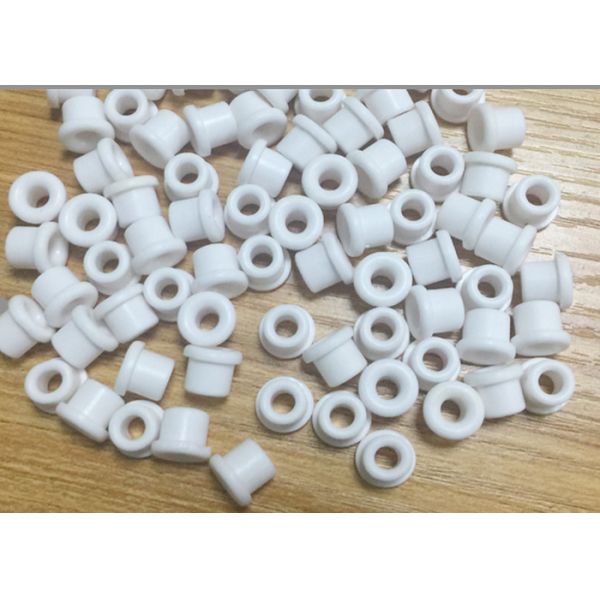

Textile Ceramic Shining Mirror Polish Aluminum Oxide Ceramic Yarn Guide Eyelet
Textile Ceramic Shining Mirror Polish Aluminum Oxide Ceramic Yarn Guide Eyelet
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC13
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Textile Ceramic shining mirror polish ceramic Yarn Guide Eyelet
Material :
95% and 99%
Usage :
Industry ceramic
Shape :
Eye
Color :
Red and White
Features :
High strength and High temperature resistance
Description

Textile Ceramic shining mirror polish ceramic Yarn Guide Eyelet

Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.

The choice of Ceramic Eyelet for textile machinery has always been a critical part of cost effective fiber processing.With todays’ extremely fast production speeds, synthetic fibers and abrasive high-wearing technical yarns have led to ever-higher demands on ceramic guides.

Some of the most important properties of alumina Ceramic Eyelet are:

  • Wear resistance
  • Frictional characteristics of the guide surface
  • Chemical resistance
  • Fracture strength
  • Surface structure (not to damage the yarn)
  • Corrosion resistance Commonly used ceramic materials are corrosion resistant to most chemicals and are thermally stable.
Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N		 (11.7) 1196
79		 (12.5) 1276
77		 (14) 1428
85		 (15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1

30.7

 31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C		 7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm		 1 X 10-13
1 X 10-8		 1X 10-13
2.2 X 10-9		 1 X 10-13
6 x 10-7		 1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils		 ac volts
per mil		 350
340		 335 330
Dielectric Constant 1Mhz
@25C		 e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C		 Tan Delta .0004

.0003

.0003

 .0002

Textile Ceramic Shining Mirror Polish Aluminum Oxide Ceramic Yarn Guide Eyelet
