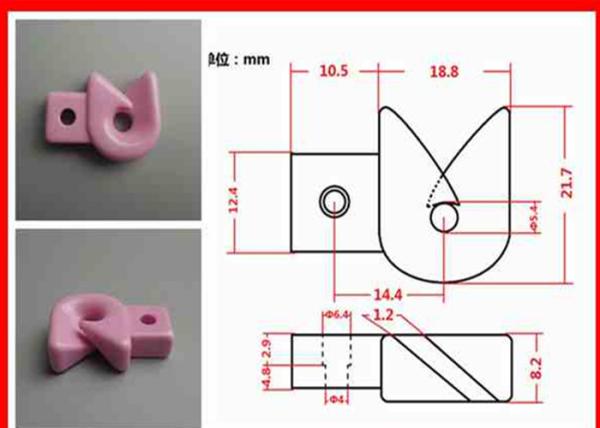

Abrasive High Wearing Technical Alumina Textile Ceramic Guide Red / White
Abrasive High Wearing Technical Alumina Textile Ceramic Guide Red / White
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Abrasive high-wearing technical alumina textile ceramic guide
Usage :
Industry ceramic
Shape :
Eye
Color :
Red and White
Features :
High strength and High temperature resistance
Description

Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.

The choice of Ceramic Eyelet for textile machinery has always been a critical part of cost effective fiber processing.With todays’ extremely fast production speeds, synthetic fibers and abrasive high-wearing technical yarns have led to ever-higher demands on ceramic guides.

Other information:

Feature Application Main usage
1.Great mechanical strength

Electric appliance industry

Automotive industry

1.Heat treatment furnace

and toughened furnace
2.High softening temperature
3.Good resistance to thermal impact
4.Small thermal expansion coefficient

Mechanical industry

Engineer industry

2.Inner liner tube and heating

tube in electric furnace
5.Good chill and abrupt heat properties
6. Resistance to acid and alkali corrosion

Alumina Ceramic Eyelet Properties:
Properties Units Alumina(Al2O3)
Porous Mullite Al2O3 92%

Al2O3

96%

 Al2O3 99% Al2O3 99.5%
Al2O3
Mechanical Density g/cm3 2.8 3.6 3.7 3.9 3.9
Color —— —— Tan White White Ivory Ivory
Water Absorption % 0 0 0 0 0
Vickers Hardness Gpa —— 7.4 11 11.5 13 14
Flexural Strength (20°C) Mpa 50~100 170 345 358 380 380
Compressive Strength (20°C) Mpa 20~100 550 2200 2300 3000 3000
Thermal Thermal Conductivity (20°C) W/m.K 3.1 3.5 16.7 24.8 25~35 25~35
Thermal Shock Resistance (20°C) ΔT(C) —— 300 250 250 200 200
Maximum Use Temperature °C 1900 1700 1500 1600 1700 1700
Electrical Volume Resistivity (25°C) Ω.cm —— >1014 >1014 >1014 >1014 >1014

Abrasive High Wearing Technical Alumina Textile Ceramic Guide Red / White
