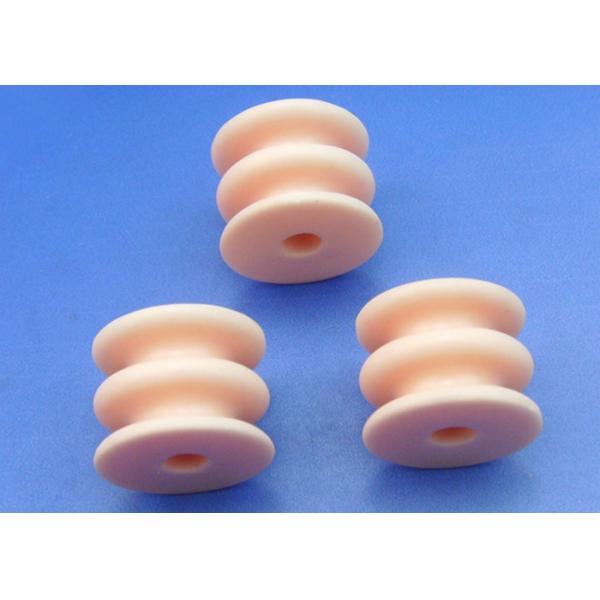

High Strength Alumina Ceramic Parts Eyelet Guide For Textile Machinery
High Strength Alumina Ceramic Parts Eyelet Guide For Textile Machinery
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC4
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
High strength Alumina Ceramic parts eyelet guide for textile machinery
Linear expansion coefficient :
＞7.1
Flexural strength :
＞320GPA
Elastic modulus :
＞280GPA
Material :
95% & 99% Al2O3
Description
Product name Textile ceramic eyelet guide
Material used Alumina, Zirconia, Tatania, all material meet RoHS, REACH appliance
Forming Hot pressing, dry pressing, ceramic injection mould, ISO pressing
Color White, black, pink, red, yellow color available
Size capability Outer diameter:the max. OD can be up to 120mm
Typical design Ceramic eyelet, ceramic loop, ceramic hook guide, ceramic pigtail and so on
Advantage

1.Excellent wear-resistance with long service life-time,

2.Cost-effective than metal ones and easy protyping to mass production,

3.Meet FDA, RoHS, REACH appliance.
Quality inspection

Fully inspection: visual & key dimensions every batch;

Sampling inspection: regular dimensions and performance parameters
Application Widely used as ceramic yarn guide, ceramic thread guide, ceramic wire guide

Performance For Industrial Ceramic
Item Unit 95 Al2O3 96 Al2O3 99 Al2O3
Physical Characteristics Heat resistance 0C 1500 1550 1800
Bulk density g/cm3 3.6 3.6 3.9
Water absorption % 0 0 0

Mechanical Characteristics		 Flexural strength Mpa 320 340 360
Hardness vickers Gpa 12.2 13.5 15.6
Elastic modulus Gpa 280 320 370
Poisson’s ratio 0.22 0.23 0.23
Thermal Characteristics Linear expansion coefficient (20-5000C) 10-6/0C 7.1 7.2 8
Thermal conductivity w/(m.k) 16 24 32
Specific Heat *10-3J/(kg*K) 0.78 0.78 0.9
Electrical Characteristics Dielectric constant (1MHZ) - 9 9.4 9.9
Dielectric loss angle *10-4 15 5 1
Dielectric strength *106V/m 12 15 15
Processing technology
Process range (mm)
Outside Diameter 1---300
Inside Diameter 0.5---300
Length 0.5---600
Accuracy of working (mm)
Perpendicularity 0.001
Concentricity 0.001
Roundness 0.0005
Straightness 0.005
Parallelism 0.01
Planeness 0.005
Roughness 0.005
Fit clearance 0.005

High Strength Alumina Ceramic Parts Eyelet Guide For Textile Machinery
