95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP-1-R11
Certification :
SGS
Place of Origin :
CHINA
MOQ :
20PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
15000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Flexural strength ( Mpa) :
>300MPA
Tensile strength ( Mpa) :
>160Mpa
Max use temperature (°C ) :
1500-1700
Thermal conductivity (W/m.K) :
16
Size :
Customize
Material :
Alumina ceramic
Package :
Carton box
Description

95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive

1.Description

Alumina ceramic is made from the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance, but relatively low strength and fracture toughness. Alumina ceramics are generally white but may also be pink or ivory. The color is derived from either the sintering additives or impurities in the raw materials.

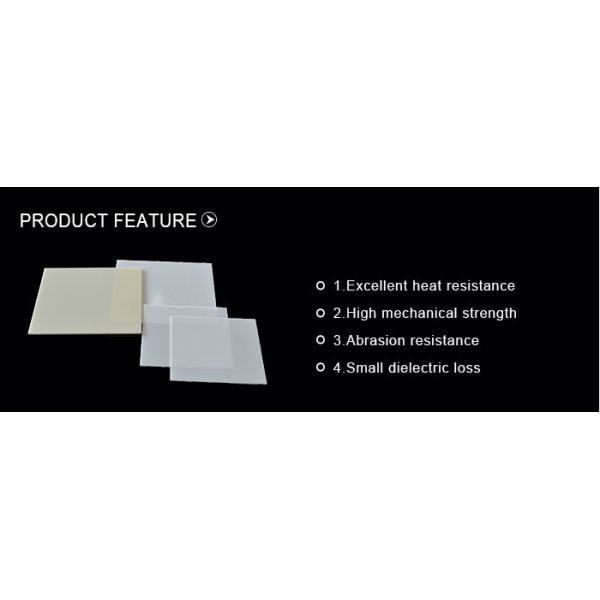

2.Product Feature
95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive

3.Product Information

Material
95% Al2O3
96% Al2O3
99% Al2O3
Zirconia Ceramic
Density (gm/cm3)
3.6
3.6
3.9
5.6~6.0
Flexural strength ( Mpa)
300
340
350
1000
Tensile strength ( Mpa)
160
170
240
400
Hardness (Gpa)
12.2
13.5
15.6
12.3
Max use temperature (°C )
1500
1600
1700
1100
Linear expansion coefficient
(20°C-500°C) 10-6/°C
7.1
7.2
8
9
Thermal conductivity
(W/m.K)
16
24
32
2~3

4..Application

95% High Pure White Color Alumina Ceramic Sheet High Thermal Conductive
