0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP-1-R3
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Product name :
0.5-2mm Thickness High Alumina Refractory Ceramic Lining Plates
Package :
Carton box
Color :
White
Size :
Customize
MOQ :
1000PCS
Shape :
Rectangle , square, round
Description

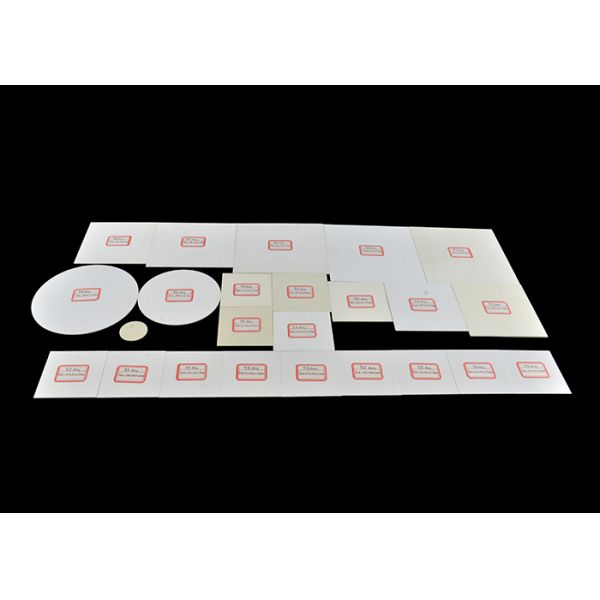

0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates

1.Description

Alumina Ceramic plates are used in many electronic applications where a thin insulating layer of thermally stable material is required to conduct heat away from electronic components whilst electrically insulating them, and material is 95%, 96%, 99% alumina and zirconia.

Properties with excellent insulation, high mechanical strength, high thermal conductivity, low expansion coefficient, small dielectric constant, high-temperature resistance, excellent erosion and wear resistance, good quality in chemical shock heat and cold.

Product Name
Alumina Ceramic plate
Material
Alumina ceramic
Color
White or Black
Size
10-300mm
Thickness
0.3mm, 0.38mm, 0.5mm, 0.635mm,1mm, And According to drawings
Surface Roughness
Ra0.2
Lead time
10 - 20days
Shipping
Air Express (DHL/UPS/TNT/ FedEx)

2.Data Sheet

Performance
95 Grade
99 Grade
Bulk Density
≥3.7 g/cm3
≥3.8 g/cm3
Tensile Strength
(Nrmal Temperature)
≥160 mpa
≥190 mpa
Bending Strength
(Nrmal Temperature)
≥280 mpa
≥310 mpa
Modulus of Elasticity
3.5*10 kg/cm2
3.6*10 kg/cm2
Modulus of Friction
0.06-0.1
0.06-0.1
DC Breakdown Strength
≥25 kv/mm
≥30 kv/mm
Rigidity(HV)or(HRA)
1650 mpa or ≥75
1650 mpa or ≥80
Properties

1. High Thermal Expansion

2. Excellent Thermal Insulation; low thermal conductivity
3. High resistance to crack propagation,high fracture toughness
4. Ability to conduct oxygen ions

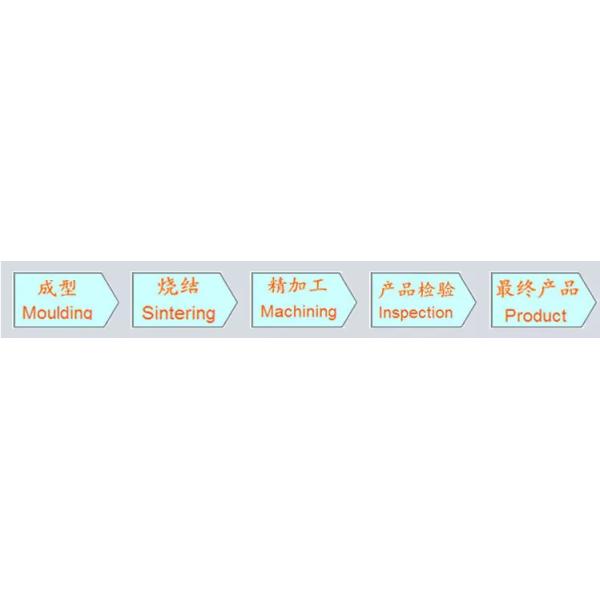

3.Process way

0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates

We can cusomize according to your detailed drawing

0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
