High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
Specifications
Brand Name :
KAMTAI
Model Number :
KTICB1+2
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability :
20000PCS/MONTH
Delivery Time :
28 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD BOX
Max using temperature :
1300℃
Package :
Carton box and Plywood box
Shape :
Rectangle , Square and Round
Application :
Gas stove, bbq
Size :
Customized
Description

High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency

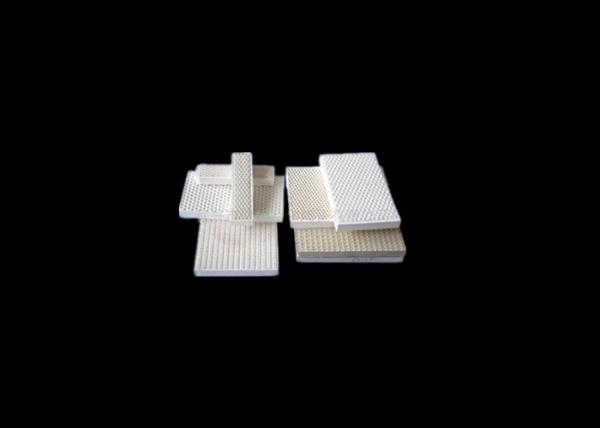

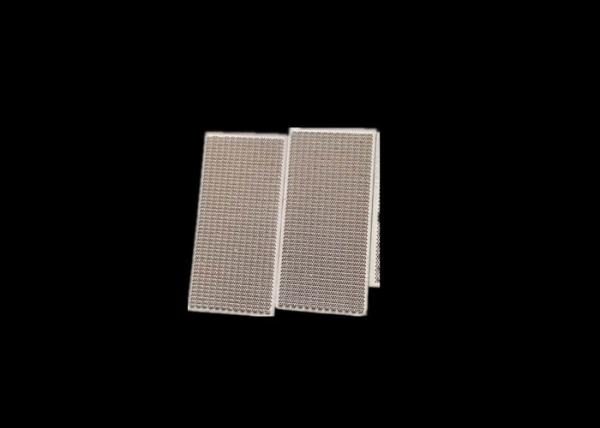

1. Description of Infrared ceramic burner plate

Infrared ceramic burner is made of high purity cordierite material and widely used in gas radiant heaters where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission.

Our special designed infrared ceramic plate provides a superb surface area and working burning surface due to its interlaced corrugated surface of the ceramic plate combined with honeycomb basis. We have been innovatively searching for the best raw material and new formula to maximize the micro-porosity of the tile

Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission. This product has good thermal shock resistance (no cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high resistance for erosion.

2.Advantages:

1. Save 20-50% energy consumption.
2. Burn without flame, low noise.
3. Reduce the formulation of such harmful gas as CO, NOx, etc by a large margin (more than 70%)
4. Strong bearing of wind, using safely.

3.Specification:

Specification

mm

 Fuel gas hole Cells/In2(CPSI) suuface
NG LPG square round square round plane

Convex diamond

Pattern

Concave

Cinquefoil

pattern

Corrugatoin

pattern
Φ100 √ √ √ - 280-520 - √ √ - √
Φ110 √ √ √ - 280-520 - √ √ - √
Φ120 √ √ √ - 280-520 - √ √ - √
Φ150 √ √ √ - 280-520 - √ √ - √
Φ80 √ √ √ - 280-520 - √ √ - √
Φ135 √ √ √ - 280-520 - √ √ - √
Φ160 √ √ √ - 280-520 - √ √ - √

MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
φ50*13mm
φ66*13mm
φ80*13mm
φ140*13mm
φ107*13mm
φ136*13mm
φ172*13mm
100*44*13mm
100*60*13mm
160*60*13mm
100*70*13mm
135*80*13mm
132*92*13mm
135*92*13mm
140*95*13mm
155*95*13mm
140*100*13mm
135*60*13mm
88*62*13mm
134*94*13mm

4.Applications:

Barbecues Gyro Cookers
Evaporators Boilers
Pizza Ovens Gas ovens
Rotisserie Ovens Convection Ovens
Pressure Fryers Space Heaters
Deep Fat Fryers Sear Cookers

High Purity Cordierite Material Infrared Ceramic Gas Burner Plate Good Burning Efficiency
