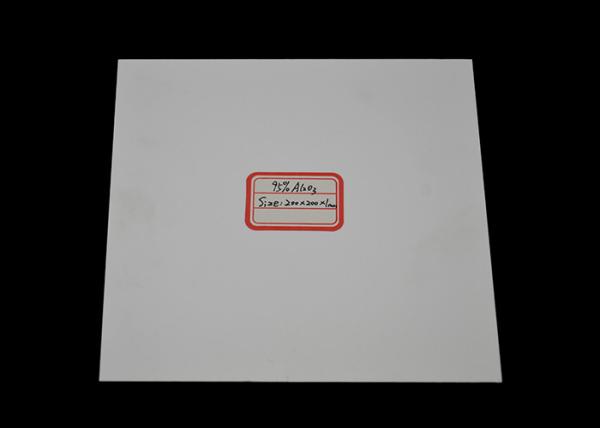

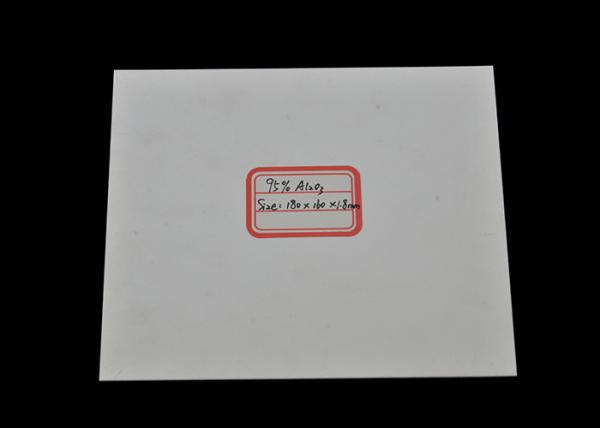

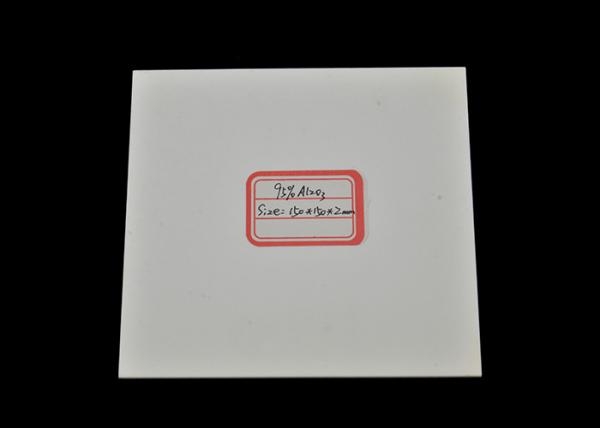

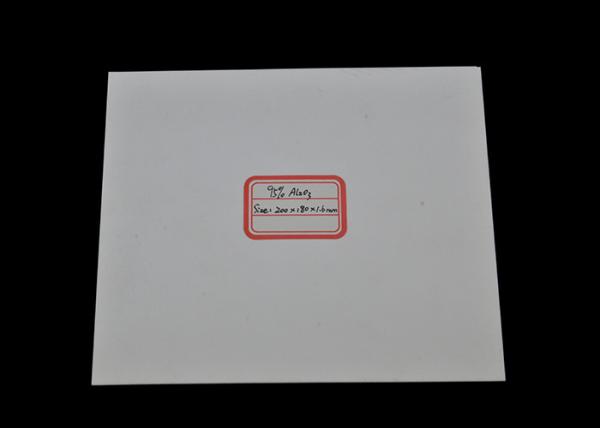

Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP-1
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Industrial Heat Resistant 96% Aluminium Oxide Alumina Ceramic Plate
Size :
200*200*1mm
Surface finish :
Polish
Features :
High temperature resistance
Color :
White
Material :
95% Al2O3
Description

Industrial Heat Resistant 96% Aluminum Oxide Ceramic , Alumina Ceramic Plate

1. Description

1.Raw material: 95% ~ 99.7% alumina optional

2.Colors: White, ivory, pink, black, green, blue optional.

3.Different tolerance level capability via CNC maching, fine grinding and laser cutting.

4.Supporting prototyping need to high volume cost down program.

5.Besides, we offer zircona ceramic plate, silicon carbide ceramic plate.

Features:

It can resistant up to 1650°C, high voltage, wear-resisting,high Hardness, high Strength, no porosity.

Key parameters control capability:

Max. dimensions 600mm x 500mm Min. thickness 0.30mm
Precision process CNC maching, grinding, lapping Min. tolerance +/-0.005mm
Roundness 0.005mm Flatness 0.002mm
Roughness Best to be Ra0.025 Liner straightness 0.01mm
Surface finish Polishing or metallized

Visual quality:

1. No cracks, no dark dots, no contamination and sharp edges;

2. Evenly distributed glaze with very smooth surface

Application:

It always works as a ceramic lining plate, transtional ceramic plate, circuit board for heating resistant, electrical insulation, high tempreature resistant, in electronics apparatus.

3. Specification

Item

Test

Condition

 Unit Symbol

95%

Alumina

ceramics

99%

Alumina

ceramics

99.7%

Alumina

ceramics
The main chemical ingredient Al2O3 Al2O3 Al2O3
Bulk Density g/cm3 3.6 3.89 3.96
Maximum Use Temperature 1450°C 1600°C 1650°C
Water absorption % 0 0 0
ROHS Hardness ≥85 ≥89 ≥89
Flexural strength 20° C MPa (psi x 103) 358 (52) 550 550
Compressive Strength 20° C MPa (psi x 103) 2068 (300) 2600(377) 2600(377)
Fracture Toughness K(I c) Mpa m1/2 4-5 5.6 6

Coefficient of

thermal expansion

 25-1000° C 1X 10-6/°C 7.6 7.9 8.2

Coefficient of

thermal conductivity

 20° C W/m °K 16 30.0 30.4
Thermal Shock Resistance Tc °C 250 200 200
Dielectricity constant 1MHz.25°C 9 9.7 9.7
Dielectric strength ac-kV/mm (ac V/mil) 8.3 (210) 8.7 (220) 8.7 (220)
Volume Resistivity 100°C ohm-cm > 1013 > 1014 > 1014
