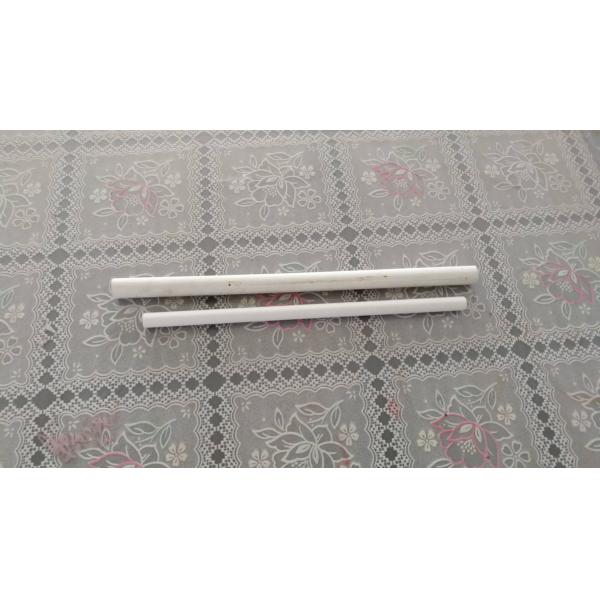

Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-35
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
High temperature machinable Alumina ceramic bar with reliable quality and lower cost
Color :
White
Material :
95% Alumina ceramic
Shape :
Rod
Description

Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable

The alumina ceramic rod/bar is an ideal wear-resistance material for delivering the sand, mine, ash dregs and molten aluminium, has excellent conductivity, high machinery strength and high temperature resistance, can resist to the acid, high temperature, corrosion and static electricity. Al2O3 is the most important technical ceramic material. It is characterized by high hardness, high compressive strength and corrosion resistance even at high temperatures. Through the content of Al2O3 in the material,these properties can be tailored to the application of customer.

Features of alumina ceramic bar:

1.High temperature, Max working temperature: 1700C.

2.Excellent wear and abrasion resistance.

3.Good chemical corrosion resistance under high temperature.

4.High dielectric properties.

5. High oxidation resistance.

The specification of alumina ceramic bar:

Unit 95% Al2O3 99.7% Al2O3 ZrO2
Color - white ivory white
Density g/cm³ 3.65 3.88 5.95
Water Absorption % 0 0 0
Young's Modulus Gpa 280 350 205
Vickers Hardness Gpa 14 20 12
Flexural Strength ( at R.T. ) Mpa 280 300 900
Compressive Strength ( at R.T. ) Mpa 2000 2500 2200
Thermal Conductivity ( at R.T. ) W/(m.K) 18-25 30 2.2
Thermal Shock Resistance ΔT(°C) 220 180-200 280-350
Max. Working Temperature ( at R.T. ) °C 1500 1700 850
Volume Resistivity ( at R.T. ) Ω.cm >10^15 >10^14 >10^12
Dielectric Constant (1 MHz at R.T. ) - 9.50 9.80 26
Dielectric Strength kV/mm 16 22 -

Reliable Bar Shaped Alumina Ceramic Parts High Temperature Machinable
