Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-27
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2500PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Highly Polished 95% Alumina Ceramic Eyelets forTextile Industry
Maximum Use Temperature :
1450℃
ROHS Hardness :
≥85
Thermal Shock Resistance :
250
Description

Highly Polished 95% Aluminum Oxide Ceramic Eyelets For Textile Industry

1. Description

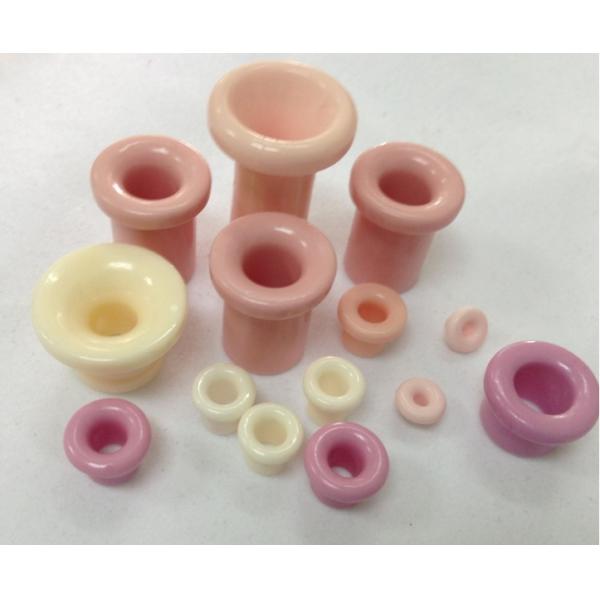

Alumina Ceramic eye is applicable for wire or silk rolling of various winding machines and textile machinery. It is made of precise ceramic and polished up to Ra0.2, high hardness and smooth surface enable the enameled wire free from hurt during surface sliding.

The ceramic eyelet is used to set less (friction is also less) location of pressure right. For cost reduction , according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly , is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time mark throw and two-sided super-accurate throw. Specification of china eye many, select and use specification listing in common use in support a customer the day after tomorrow now, also may demand making to order according to the customer.


2.Features

1.Use temperatures up to 2400°

2. High density

3. High hardness

4. Low thermal conductivity

5. Chemical inertness

6. Resistance to molten metals

7. Good Wear resistance

8. High fracture toughness

3.Performance For Alumina ceramic

Item Test Condition Unit Symbol 95%Alumina ceramics 99%Alumina ceramics 99.6%Alumina ceramics
The main chemical ingredient Al2O3 Al2O3 Al2O3
Bulk Density g/cm3 3.6 3.89 3.96
Maximum Use Temperature 1450°C 1600°C 1650°C
Water absorption % 0 0 0
ROHS Hardness ≥85 ≥89 ≥89
Flexural strength 20° C MPa (psi x 103) 358 (52) 550 550
Compressive Strength 20° C MPa (psi x 103) 2068 (300) 2600(377) 2600(377)
Fracture Toughness K(I c) Mpa m1/2 4-5 5.6 6

Coefficient of

thermal expansion

 25-1000° C 1X 10-6/°C 7.6 7.9 8.2

Coefficient of

thermal conductivity

 20° C W/m °K 16 30.0 30.4
Thermal Shock Resistance Tc °C 250 200

200

We can supply the products according to customer's drawings, samples and performance requirement.
