Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Super Aluminum Oxide Ceramic Yarn Guide Apply In Textile Machinery Ceramic Parts
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-13
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
High quality Alumina ceramic yarn guide apply in textile machinery ceramic parts
Usage :
Ceramic yarn guide
Surface :
Polishing as your request
Advantages :
Good wear resistance
Size :
Customized
Description

1.Product description

We offers a wide range of material types with different property profiles that can be adjusted via a targeted matrix design.

This material has very high hardness, very high stiffness, very good corrosion resistance to chemicals at high temperature, and very high refractoriness or use temperature.

The applications for alumina advanced ceramics are heavy-duty forming tools, substrates and resistor cores in the electronics industry, tiles for wear protection and ballistics, thread guides in textile engineering, seal and regulator discs for valves, heat-sinks for lighting systems, protection tubes in thermal processes or catalyst carriers for the chemicals industry.

2.Technical data

Material
95% Al2O3
99% Al2O3
ZrO2(Y-PSZ)
Color
White/Pink
Ivory
White
Density (g/cm3)
3.65
3.88
5.95-6.05
Water Absorption (%)
0
0
0
Moh's Hardness
9
9
9
Flexural Strength (Mpa) (25℃)
352
364
900
Compressive Strength (Mpa) (25℃)
2000
2500
2200
Thermal Conductivity (W/m.k) (25℃)
18-25
27
2.2
Thermal Expansion Coefficient
(25-1000℃)(10-6mm/℃)
8
8
10.3
Therma Shock Resistance △T(℃)
220
180-200
280-350
Max. Working Temperature (℃)
1500
1700
850
Dielectric Strength (kv/mm)
16
20
---
Electrical Resistivity (Ω.cm) (25℃)
1014
1014
1012
Dielectric Constant
(@1MHz, 25℃)
9
9.7
26
Dielectric Loss (tan delta)
(@1MHz, 25℃)
0.0004
0.0001
---

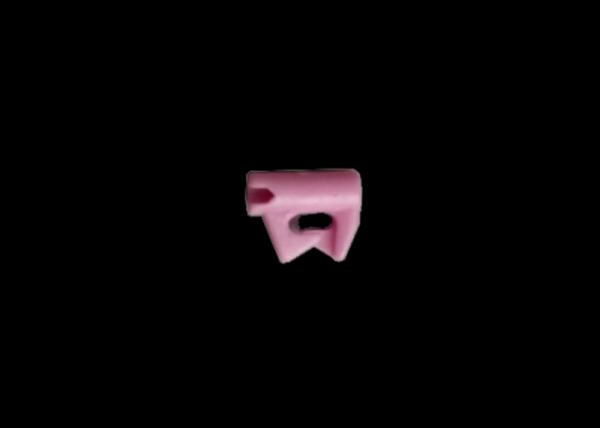

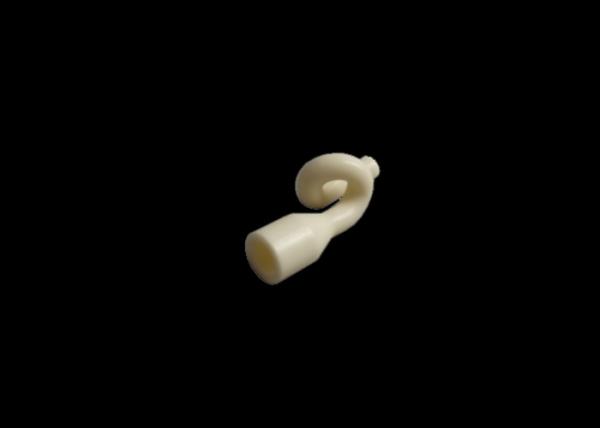

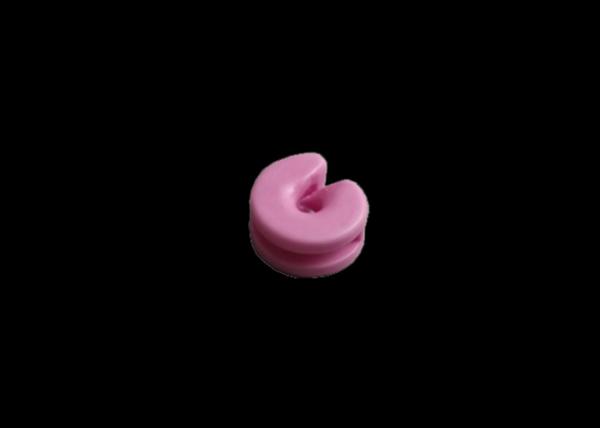

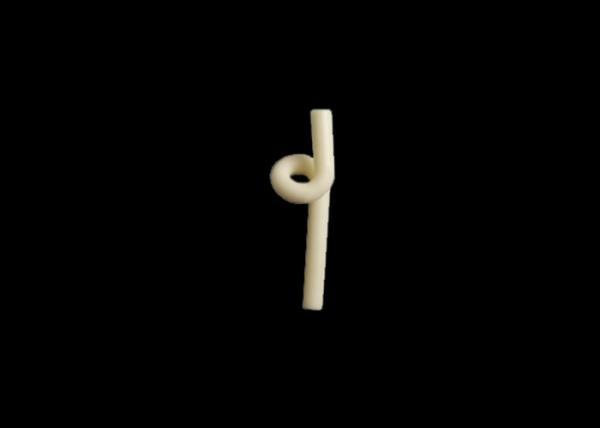

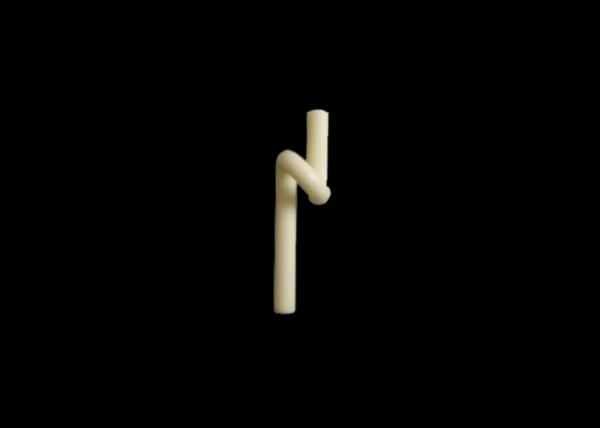

We produce different shapes of textile ceramic parts of 95% AUMINA CERAMIC (whie&pink), 99% ALMINA CERAMIC or ZIRCONIA CERAMICS. The ceramic parts for textile machinery include ceramic wire guide eyelets, ceramic rollers, ceramic guide rods, ceramic thread guides, textile ceramic cutters, pigtail guides, guide discs
