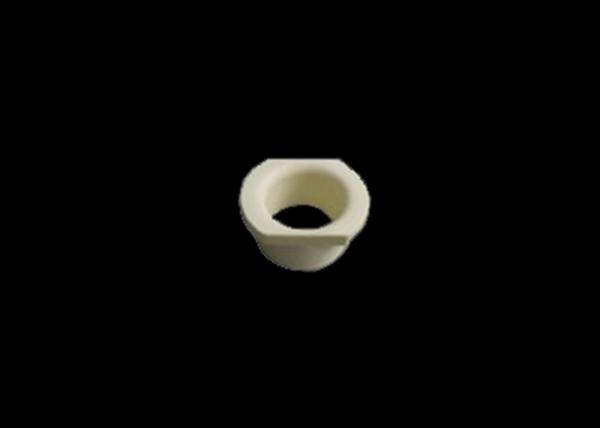

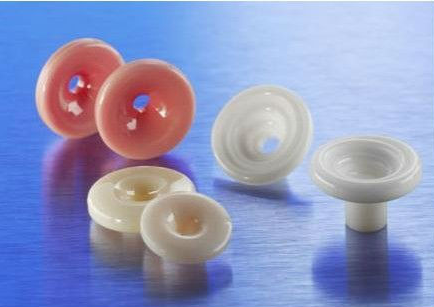

95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-1
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
95% High strength Alumina Ceramic guide Eyelet for Textile Machine
Material :
95% Al2O3
Feature :
High wear resistance
Color :
Red and White
MOQ :
1000
Description

95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance

Alumina Textile ceramic eyelet guides (Ceramic ring ) and zirconia ceramic eyelet are applied to the coiling machine and spinning and weaving machinery, it is in common use fault silk another piece , is used to demand no high fault silk occasion.

Silk thread slides when the job, in china eye outside, for reducing friction, must raise material hardness, smoothness and form.

Our company select and use 99% Al2O3 , hardness greater than HRa88 , density 3.85, surpasses essence throwing Ra 0.2.

The alumia ceramic (Textile ceramic eyelet) Zirconia ceramic eyelet is used to set less (friction is also less) location of pressure right.

Some of the most important properties of alumina Ceramic Yarn Eyelet are:

  • Wear resistance
  • Frictional characteristics of the guide surface
  • Chemical resistance
  • Fracture strength
  • Surface structure (not to damage the yarn)
  • Corrosion resistance Commonly used ceramic materials are corrosion resistant to most chemicals and are thermally stable.

Alumina Ceramic Eyelet Properties:
Properties Units Alumina(Al2O3)
Porous Mullite Al2O3 92%

Al2O3

96%

 Al2O3 99% Al2O3 99.5%
Al2O3
Mechanical Density g/cm3 2.8 3.6 3.7 3.9 3.9
Color —— —— Tan White White Ivory Ivory
Water Absorption % 0 0 0 0 0
Vickers Hardness Gpa —— 7.4 11 11.5 13 14
Flexural Strength (20°C) Mpa 50~100 170 345 358 380 380
Compressive Strength (20°C) Mpa 20~100 550 2200 2300 3000 3000
Thermal Thermal Conductivity (20°C) W/m.K 3.1 3.5 16.7 24.8 25~35 25~35
Thermal Shock Resistance (20°C) ΔT(C) —— 300 250 250 200 200
Maximum Use Temperature °C 1900 1700 1500 1600 1700 1700
Electrical Volume Resistivity (25°C) Ω.cm —— >1014 >1014 >1014 >1014 >1014

95% High Strength Alumina Ceramic Guide Eyelet For Textile Machine , Wear Resistance
