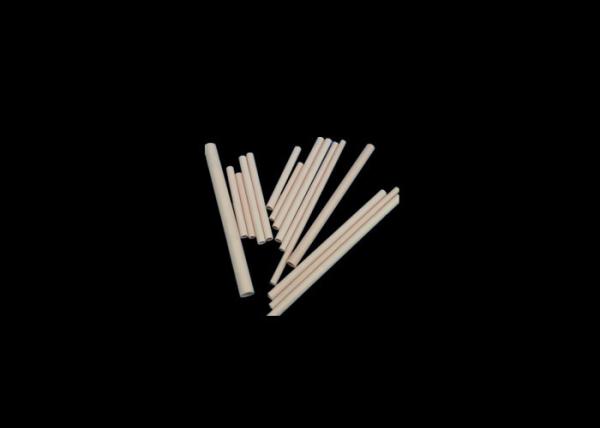

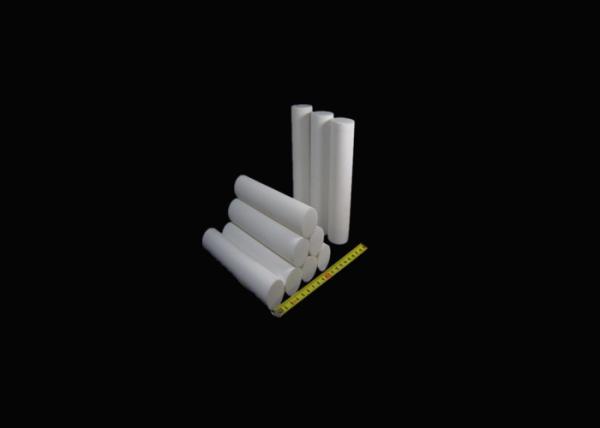

High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-35
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
High Precision Machining and high strength 95% alumina ceramic bar
Shape :
Rod
Material :
95% Alumina ceramic
Size :
Can be customized
Description

High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining

1. Name: Alumina Ceramics
2. Size: as customers' drawing
3. Al2O3 Content: 95% Alumina
4. Color: white or ivory
5. Working Temperature: 1600-1700 degree
6. Feature: high mechanical strength, good insulation&high wear resistant, etc.
7. Application: for refractory furnace or Kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings Or Other Mechanical Applications

Specification :

We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics, This material may be used in applications that require High elevated temperatures ,High dielectric strength, excellent electrical resistance . wear or corrosion resistance .high temperature capability .High Electrical insulation.

Technical Parameter
Naterial
Unit
95% Alumina Ceramic
96% Alumina Ceramic
99% Alumina Ceramic
99.7% Alumina Ceramic
Density
g/cm³
3.65
3.7
3.85
3.85
Flexural Strength
Mpa
290
300
350
350
Compressive Strength
Mpa
3300
3400
3600
3600
Modulus of Elasticity
Gpa
340
350
380
380
Impact Resistance
MPam1/2
3.9
4.0
5.0
5.0
Weibull Modulus
M
10
10
11
11
Vickers Hardulus
HV0.5
1800
1850
1900
2000
Thermal Expansion Coefficient
10-6K-1
5.0-8.3
5.0-8.3
5.4-8.3
5.4-8.3
Thermal Conductivity
W/Mk
23
24
27
28
Thermal Shock Resistance
△T℃
250
250
250
280
Maximum Use Temperature
℃
1600
1650
1700
1700
Volume Resistivity at 20℃
Ω
≥10^14
≥10^14
≥10^14
≥10^15
Dielectric Strength
KV/mm
20
20
25
30
Dielectric Constant
εr
10
10
10
10


High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining
