Advanced Refractory Kiln Furniture Silicon Carbide Kiln Shelves Pottery Use
Advanced Refractory Kiln Furniture Silicon Carbide Kiln Shelves Pottery Use
Specifications
Brand Name :
KAMTAI
Model Number :
KTRKF10
Certification :
ISO
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
5000PCS/MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
PLYWOOD BOX AND PALLET
Name :
Advanced Refractory kiln furniture pottery use Silicon carbide kiln shelves
Using area :
Kiln
Sic :
＞90%
Density :
2.7-2.75g/cm3
Material :
Silicon carbide
Type :
Kiln furniture
Description

Advanced Refractory kiln furniture pottery use Silicon carbide kiln shelves

1. Description

Silicon carbide sic plates applied to ceramics for daily use Kiln and furnace as kiln furniture.

The silicon carbide product belongs to the high-quality fire-proof material, it has the fine thermal conductivity, the high heat shock stability, the high load capacity softening point and the very good wear-resisting performance, widely uses in each kind having the special request profession. Company product: The chamber, the furnace tube, the wear-resisting guide rail, the silicon carbide chest earthen bowl, receives burns the board, the push pedal, the awning board, the kiln stove burner nozzle and so on. The quality is stable, the size is precise, could make as special request and make surface polish.

Silicon Carbide Plate, also known as carborundum, is a compound of silicon and carbon with a chemical formula SiC. is made through high temperature sintering, adopting the higher quality raw materials. It has characteristics of stable performance, excellent thermal shock resistance, oxidation resistance, long life, thin volume but high bulk density. Its good thermal conductivity can assure to save energy at maximum level.

2. Characteristics

Max temperature tolerance 1650 degree
High thermal conductivity and shock resistance
High mechanical strength and abrasion resistance

Excellent energy efficiency and corrosion resistance

3. Relevant Recommendation:

Silicon Nitride Ceramics
Oxide bonded SiC (OSIC)
Recrystallizde SiC (Re-SiC)
Reaction Bonded SiC (SiSiC)

4. Specifications

Chemical Composition SIC ≥ % 90
Max. Service Temp ºC 1400
Refractoriness ≥ SK 39
2kg/cm2 Refractoriness under load T2 ≥ ºC 1790
Modulus of Rupturt at room temp ≥ Kg/cm2 500
Modulus of Rupture at 1400ºC ≥ Kg/cm2 550
Compressive strenght ≥ Kg/cm2 1300
Thermal Expansion at 1000ºC % 0.42-0.48
Apparent Porosity % ≤20
Bulk Density g/cm3 2.55-2.7
Thermal Conductivity at 1000ºC Kcal/m.hr.ºC 13.5-14.5

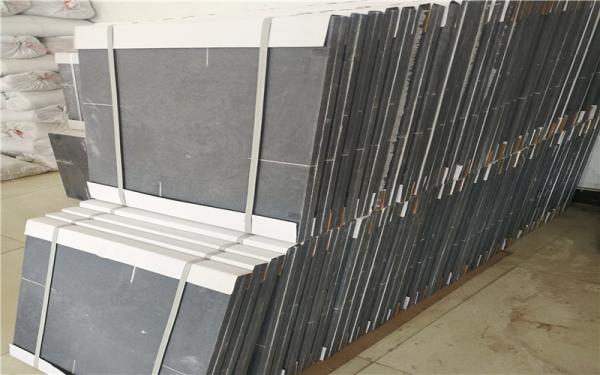

5. Package

We use high strength plywood box and pallet to pack. it is very good packing, we have exported to many countries and area, such as Korea, HongKong, Japan,Thailand, Singapore, Australia, New Zealand , USA, Brazil, Chile, Peru, France, UK, Germany,Italy,Spain,Greece,Austria and so on. There is no need to do fumigation, it is very strong and eco-friendly material for package.

When shipping, sometimes package will have damage, so we have to be very careful when packing. Our customer said our package is very good, every time they receive pacakge, they find no damage, It is what we expect.
