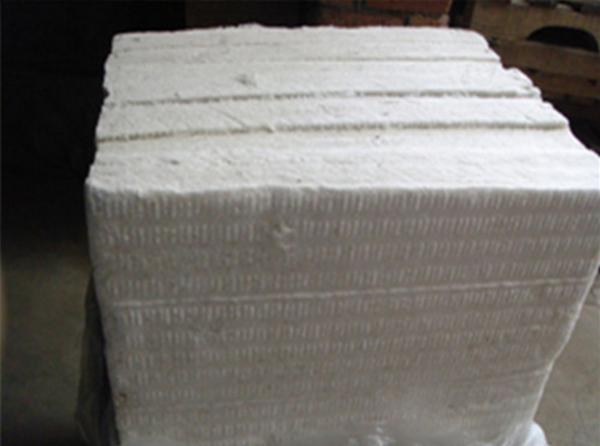

High Heat Insulation Refractory Ceramic Fiber Board White Color For Air Stove
High Heat Insulation Refractory Ceramic Fiber Board White Color For Air Stove
Specifications
Brand Name :
KAMTAI
Model Number :
KTCB8
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram,Paypal
Supply Ability :
30000 Cubic Meter/Cubic Meters per Year
Delivery Time :
25 days after payment
Packaging Details :
Carton box
Thickness: :
10-50mm
Chemical content :
AL2O3+SIO2
Working Temp :
1000C/1100C/1250C
Type :
Insulation material
Strength :
Good
Color :
White
Description

KT High heat resistant refractory ceramic fiber board for air stove

1. Description

By adding a small amount of high-purity alumina silicate fiber binders, Ceramic Fiber Board is made through automation control and continuous production process, with a host of features such as precise size, good flatness, high compressive strength, lightweight, excellent thermal shock resistance and anti-stripping, which can be widely used for insulation in the linings around and at the bottom of kilns, as well as ceramic kilns fire position, craft glass mold and other positions.

Typically, good strength and durability properties ensure they are suitable for use within applications that require a rigid core material, such as fire doors, cladding of structures and as support for penetration seals.

characteristics & application fireplace refractory ceramic fiber board
Characteristics precise flatnessse size and excellet flatness, easy to instanll and to be cutted
good fiber distribution
low heat capacity and low thermal conductivity
excellent chemical stability and thermal stablity
good thermal shock resistance
high compressive strength
non-brittle material, good elasticity
Application Industrial furnace wall lining and bricking-up insulation layer, which can be used in iron and steel furnace, lanunders & distribution pens
Non ferrous metal industry, Ceramic industry, Glass industry. Alumina industry
heat insulation of high temperature and high heat equipments
boilers and heater conbustion chamber
heat resistance for fireplace
Heat insulation, fire proof and sound insulation of aerospace, ship building industry
2. The technical data of refractory ceramic fiber board in below
we can offer 1050,1260,1400,1450ceramic fiber board.
Ceramic Fiber Board
Item 1050 COM 1260 STD 1260 HP 1400 HA 1450 HZ
working temperature 950℃(1742℉) 1050℃(11942℉) 1100℃(2012℉) 1200℃(21922℉) 1350℃(2462℉)
density (kg/m3) 250 280-450
permanent linear change on
heating(%)		 950℃*24h
≤-4		 1050℃*24h
≤-3		 1100℃*24h
≤-3		 1200℃*24h
≤-4		 1350℃*24h
≤-3
chemical
composition		 AL2O3 37% 46% 47-49% 52-55% 39-40%
ZrO2 —— —— —— 15-17%
AL2O3+SiO2 96% 97% 99% 99% ——
AL2O3+SiO2+ZrO2 —— —— —— —— 99%
Fe2O3 ≤1.0% ≤0.8% ≤0.2% ≤0.2% ≤0.2%
Na2O+k2o ≤0.8% ≤0.5% ≤0.2% ≤0.2% ≤0.2%
The normal size of ceramic fibre board
size L*W( mm ) 1200*1000; 1200*600; 1000*1000; 1000*600; 900*600; 600*300
Thickness (mm) 3-80, 10mm

3. Shipping and Package

Packing of ceramic fiber blanket: woven bag or carton.

Shipping of ceramic fiber blanket: By vessel or by train from any Chinese port, Samples can be delivered by International express.
