Stove Mullite Insulating Refractory Fire Bricks High Purity Energy Saving Custom
Stove Mullite Insulating Refractory Fire Bricks High Purity Energy Saving Custom
Specifications
Brand Name :
KAMTAI
Model Number :
KTMFB4
Certification :
SGS
Place of Origin :
CHINA
MOQ :
3000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
50000PCS / MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
PLYWOOD PALLET
Material: :
Mullite
Refractoriness :
1580-1700℃
Fe2O3 content :
0.6-1.3%
bulk density :
0.6-1g/cm3
Shape :
Brick
Feature :
Thermal shock
Description

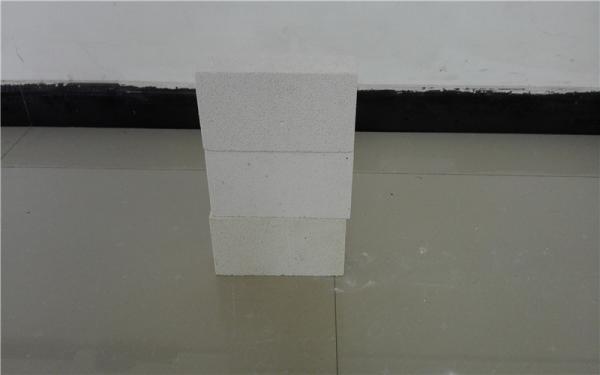

High purity mullite insulating lightweight refractory fire brick

1. Description

Insulating Fire Brick (IFB) is an excellent high temperature insulation product, and offers a combination of insulating properties with load bearing ability. IFBs are suited to applications above 1000°C or 1832°F and particularly suited to highest temperature applications above 1600°C or 2800°F.


IFB has great features including low thermal conductivity, High heat resistant and durability, Excellent resistance to thermal shock, Excellent construction strength and structural integrity, etc, which enable its capability of dealing with erosive and abrasive environments. IFB can either deliver big energy savings for many industrials or offer superior structural performance in load bearing applications or/and in conditions where mechanical abrasion exists or flow of hot gases is severe.

KAMTAI Lightweight Mullite Insulating Fire Brick manufactured from high-grade, high purity refractory materials by mixing, press-forming, drying, sintering and machining. Good process providing excellent heat insulation at high temperature and offers genuine energy savings.

KAMTAI Lightweight Mullite Insulating Fire Brick is well proven products for solving many problems of heat containment in industries.Typical applications for IFBs include: lining and back lining of various furnaces in the industry of metallurgy, petrochemical, ceramics, machinery and building materials. Insulating Firebrick (IFB) can be used in applications like:

Cracking Furnace; Conversion Furnace

Heating equipment or Heating Furnace, Even-heating Furnace,Heat-processing Furnace

2. Feature

Mullite insulating bricks characteristics and advantages: 1. Lower content of iron, alkaline and impurities, good high temperature properties. 2. Homogeneous structure, light weight, energy saving because lower heat storage in the furnace during cooling cycles. 3. High strength, good thermal shock resistance under high temperature. 4. Precise sizes due to grinding and shaping after sintering, which meets the requirement of construction. 5. Max service temp: Up to 1730C (3160F)

3. Mullite Insulating Fire Brick-Technical Specifications
ITEM Number JM23 JM26 JM28
Max Temperature 1260°C (2300F) 1430°C (2600F) 1540°C (2800F)
Bulk Density (g/cm3) 0.6 0.8 0.89
Cold Crushing Strength (Mpa) 1.2 2.4 2.6
Modulus of Rupture (Mpa) 0.9 1.5 1.6

Permanent Linear Change (%)

(CT -30 °CX 24H)

-0.1

1230x24

 -0.5

-0.8

1510x24
Reversible thermal expansion at 1100 °C 0.5 0.5 0.5

Thermal shock resistance (cycles)

1100°C water cooling

 30
Thermal conductivity (W/m.k) 400 °C/725°F 0.17 0.24 0.3
600 °C/1112°F 0.19 0.27 0.32
800 °C/1472°F 0.22 0.30 0.35
1000 °C/1832°F 0.25 0.32 0.38
1200 °C/2192°F

0.39

Fire Clay Insulating Bricks

DITA Insulating Fire Bricks manufactured from high purity alumina clay by mixing, press-forming, drying, sintering and machining. Good process providing excellent heat insulation at high temperature and offers genuine energy savings.

Insulating Fire Bricks are well proven products for solving many problems of heat containment in industries as diverse as ceramic production and anodes for primary aluminum.

4. Pacakge

Package: The bricks are always palletized and shrink wrapped, usually 1.2~1.5MT per pallet.

Shipping: Delivery by sea or as customer requirment.

Departure Port : Shanghai port or as requirment.
