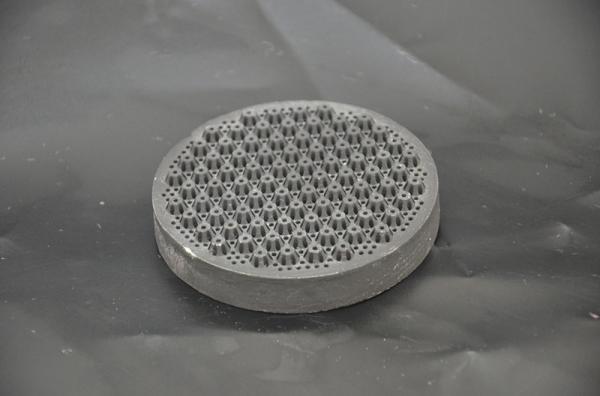

Cordierite Infrared Stove Top Plate , Round Burner Plates For Electric Stove
Cordierite Infrared Stove Top Plate , Round Burner Plates For Electric Stove
Specifications
Brand Name :
KAMTAI
Model Number :
KTICB5
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability :
20000PCS/MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD BOX
Cordierite crystal phase :
≥90%
Material :
Cordierite
Water-absorbing rate :
23-27%
Density :
2.0g/cm3
Shape :
Rectangle and Round
MOQ :
1000PCS
Description

1. Description

The gas combustion is occurred inside the holes of the ceramic combustion plate; and the heat energy is radiated efficiently in the means of ultra-red rays. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

2. Advantage & features

1. Energy saving up to 30-50%
2. Balanced and well-distributed heating
3. No flame burning, No noise burning
4. Reduce harmful exhaust gas
5. Strong mechanical strength & thermal shock resistance

3. Technical data

Parameters
Unit
standard
typical data
Cordierite crystal phase
wt%
≥90
94
Coefficient of Thermal Expansion20-800°C
cm/cm/°C
≤1.2
≤1.5×10-6
Thermal Stability20-650°C
times
≥1
3
Soften Temperature
°C
≥1420
1440
Compression Strength
Lengthways
MPa
≥15
16.9
Horizontal
MPa
≥2
6.2
Specific Weight
Kg/L
≥0.15
0.45-0.5
Porosity
%
40-45
41
Water-absorbing rate
%
23-27
23.8

4. Applications

Barbecues Gyro Cookers
Evaporators Boilers
Pizza Ovens Gas ovens
Rotisserie Ovens Convection Ovens
Pressure Fryers Space Heaters
Deep Fat Fryers

Sear Cookers
