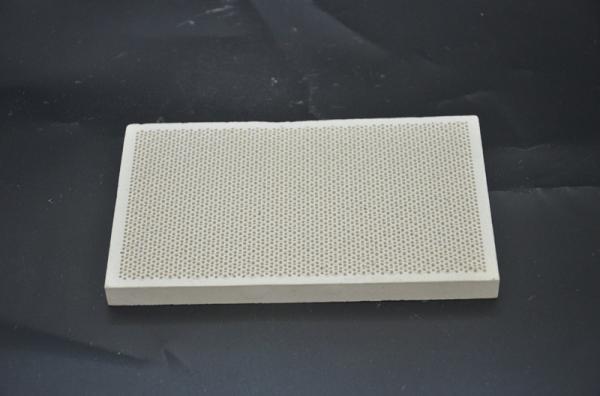

Infrared Honeycomb Ceramic Burner Plate For Gas Brooder 132 * 92 * 13mm
Infrared Honeycomb Ceramic Burner Plate For Gas Brooder 132 * 92 * 13mm
Infrared Honeycomb Ceramic Burner Plate For Gas Brooder 132 * 92 * 13mm
Infrared Honeycomb Ceramic Burner Plate For Gas Brooder 132 * 92 * 13mm
Specifications
Brand Name :
KAMTAI
Model Number :
KTICB6
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability :
10000PCS/MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD BOX
Length :
132mm
Material :
Cordierite
Package :
Carton box
Specific gravity (g/cm3) :
0.6-0.9g/cm3
Shape :
Rectangle
Surface :
Holes
Description

1. Description

Infrared catalytic burner is a porous ceramic honeycomb panels attached to the catalyst as a burning stove, made ​​use of advanced science and technology design. As a result of the ideal combustion - catalytic combustion of methane gas can be more fully combustion, maximize the energy of the gas, while also reducing flue gas pollution (CO <0.02% of NOx <10 ppm), completely to meet national environmental standards; catalytic combustion but also to eliminate the infrared combustion prone to coking phenomenon, to effectively extend the life of the burner; our catalytic combustion in the hole of the porous ceramic honeycomb board, it is true flameless combustion, produce most of the energy released in the form of infrared radiation, infrared has a strong penetration can stimulate the resonance of water molecules, so that the heat to penetrate into the depths of the object to be heated evenly. in order to ensure uniform heating effect to achieve the purpose to improve the heating quality and drying efficiency.

2. Specification

MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
φ50*13mm
φ66*13mm
φ80*13mm
φ140*13mm
φ107*13mm
φ136*13mm
φ172*13mm
100*44*13mm
100*60*13mm
160*60*13mm
100*70*13mm
135*80*13mm
132*92*13mm
135*92*13mm
140*95*13mm
155*95*13mm
140*100*13mm
135*60*13mm
88*62*13mm
134*94*13mm
Materials
Cordierite
Water absorption (%)
≥ 50.4
Porosity (%)
≥ 61
Specific gravity (g/cm3)
0.6-0.9
Thermal expansion coefficient (10-6/K)
1.5-3
Temperature softening (°C)
＞1200
Surface burning temperature (°C)
1000-1200

3. Infrared burner has the following characteristics

1. Use of liquefied petroleum gas, clean, environmentally friendly.
2. High thermal efficiency, economical and practical, the cost of gas consumption than the power consumption savings of 50%.
3. Install a convenient and simple. Compared with the electric dryer, reduce costs by more than half.
Therefore, using the infrared burner has become the industrial heating, drying, thermal insulation of a new technology, new vigorous, it has been widely used in industrial paint, printing and dyeing, food and other industries and fields.
