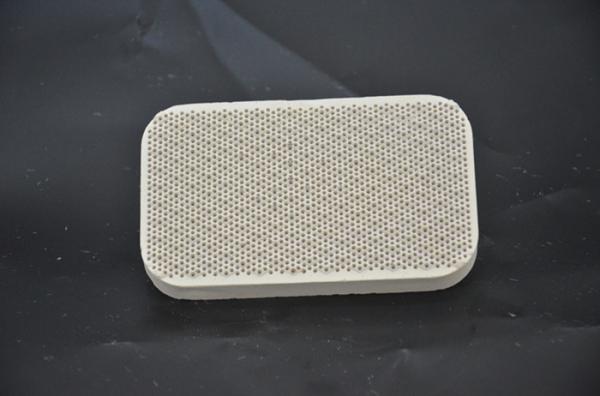

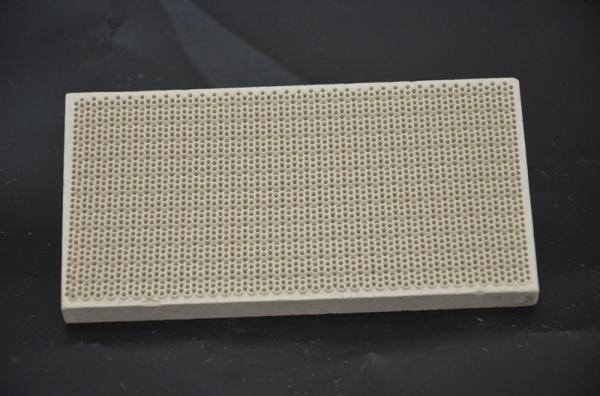

Infrared Honeycomb Ceramic Burner Plate Thermal Shock Resistance For Pizza Ovens
Infrared Honeycomb Ceramic Burner Plate Thermal Shock Resistance For Pizza Ovens
Infrared Honeycomb Ceramic Burner Plate Thermal Shock Resistance For Pizza Ovens
Infrared Honeycomb Ceramic Burner Plate Thermal Shock Resistance For Pizza Ovens
Specifications
Brand Name :
KAMTAI
Model Number :
KTICB20
Certification :
SGS
Place of Origin :
CHINA
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability :
10000PCS/MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD BOX
Chemical Content :
Al2O3+SiO2+MgO
Material :
Cordierite
Color :
White
Density :
2.0g/cm3
Shape :
Rectangle
Water absorption :
50.4%
Description

1. Application

1. Gas stove / cooker /Roaster

2. Gas room heater

3. Barbecue furnace

4. Industrial baking equipment

2. Advantage & features:

1. Energy saving up to 30-50%

2. Balanced and well-distributed heating

3. No flame burning, No noise burning

4. Reduce harmful exhaust gas

5. Strong mechanical strength & thermal shock resistance

The gas combustion is occurred inside the holes of the China Infrared Ceramic Plate; and the heat energy is radiated high-efficiently in the means of ultra-red rays, avoiding energy loss through visible light. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

3. Technical parameters:

Note: Size and decorative design will be produced according to customer requirement

Item
Test Condition
Unit&Symbol
Cordierite ceramics
The main chemical ingredient
MgO, Al2O3,SiO2
Bulk Density
gm/cc
2.5
Maximum Use Temperature
1200℃
Water absorption
%
0
Hardness
HV
800
Bending Strength
20℃

Kgf/cm2
900
Compressive Strength
20℃
Kgf/cm2
3500
Fracture Toughness
K(I c)
Mpa m1/2
Thermal expansion
1X 10-6/℃
≤2.0
Thermal conductivity
25℃-30℃
W/m.k
1.3
Thermal Shock Resistance
Tc
℃
250
Dielectricity constant
1MHz.25℃
6
MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
φ50*13mm
φ66*13mm
φ80*13mm
φ140*13mm
φ107*13mm
φ136*13mm
φ172*13mm
100*44*13mm
100*60*13mm
160*60*13mm
100*70*13mm
135*80*13mm
132*92*13mm
135*92*13mm
140*95*13mm
155*95*13mm
140*100*13mm
135*60*13mm
88*62*13mm
134*94*13mm



We promise:
- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.
