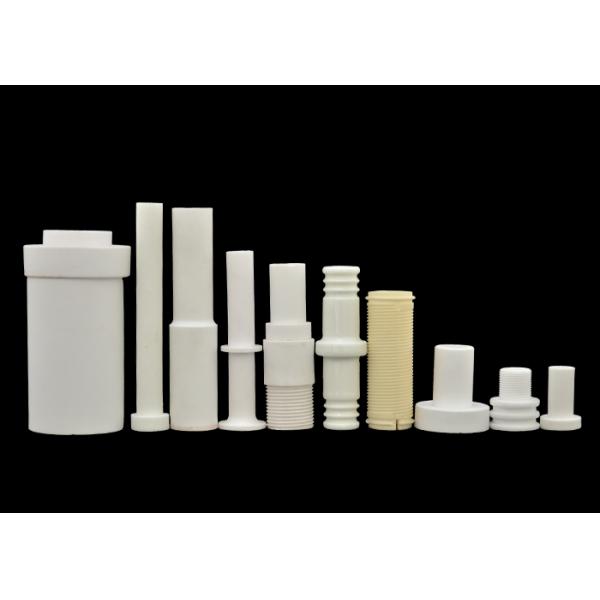

High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
Specifications
Brand Name :
KAMTAI
Model Number :
KTST
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Steatite Ceramic Tube
Hole size :
2mm
Size :
Customize
Material :
Steatite
Using temperature :
1500℃
Feature :
Good insulation
Description

High pure and high temperature resistance 95% Alumina ceramic tube

1. Description

Steatite ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.

2. Advantage

1). Excellent insulation ,security , long working life .

2). Precise grinding and polishing.

3). Excellent heat radiation, small size ,more environmental and energy-efficient .

4). good thermal conductivity
5). large specific heat capacity
6). low pressure drop
7). good heat-shock resisting ability

8). Working temperature: 600℃-1200℃

Item Index Unit Steatite ceramic 95 Al2O3 96 Al2O3
Physical Characteristics Bulk density g/cm3 2.7 3.2 3.6
Water absorption % 0 0 0
Mechanical Characteristics Flexural strength Mpa 145 320 340
Hardness Vickers Gpa 5.7 12.2 13.5
Poisson’s ratio - 0.21 0.22 0.23
Thermal Characteristics Thermal conductivity w/(m.k) 2.5 16 24
Electrical Characteristics Dielectric constant(1MHZ) - 6.2 9 9.4

3. Application

1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.

2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.

4). high-power electrical applicance and all kinds of insulation device

High Frequency Electrical Insulation Steatite Ceramic Tube For Electricity
