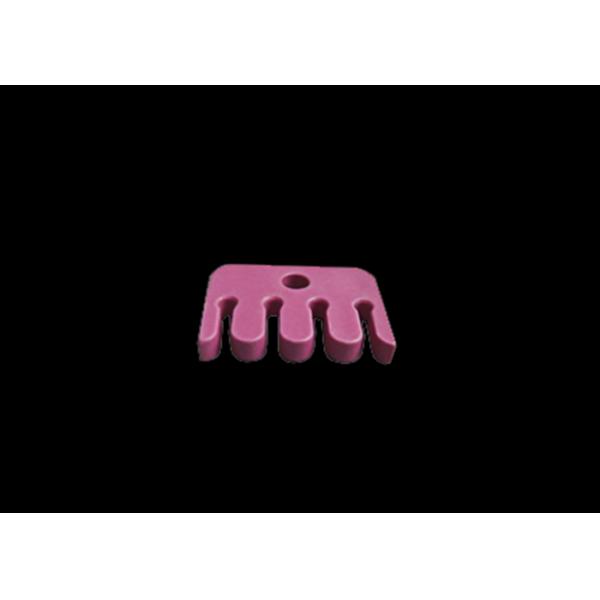

Wear Resistance 95% Aluminium Oxide Ceramic Yarn Guide For Textile Machine Use
Wear Resistance 95% Aluminium Oxide Ceramic Yarn Guide For Textile Machine Use
Wear Resistance 95% Aluminium Oxide Ceramic Yarn Guide For Textile Machine Use
Wear Resistance 95% Aluminium Oxide Ceramic Yarn Guide For Textile Machine Use
Wear Resistance 95% Aluminium Oxide Ceramic Yarn Guide For Textile Machine Use
Wear Resistance 95% Aluminium Oxide Ceramic Yarn Guide For Textile Machine Use
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-221
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :

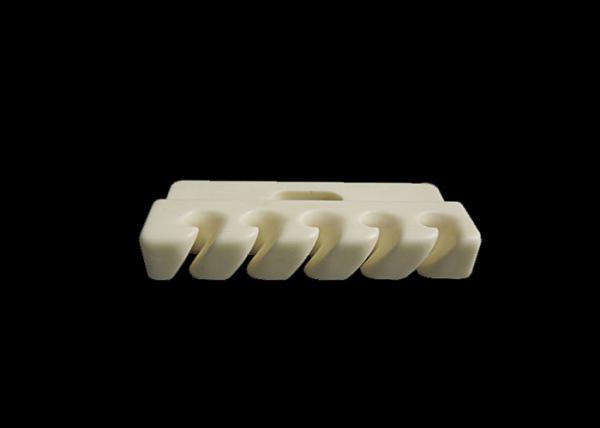

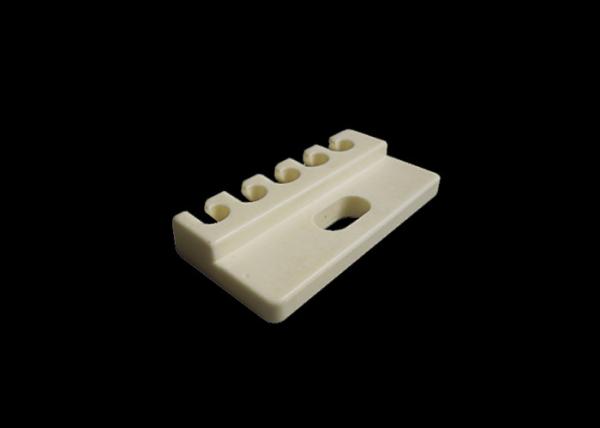

High wear resistance 95% Alumina ceramic yarn guide
Shape :
Comb
Alumina content :
95%
MOQ :
500PCS
Package :
Carton box
Description

High Polish Aluminum Oxide Ceramic Yarn Guide

Alumina Ceramic yarn guide in electrical ceramics are made of alumina or TIO2. There are so many advantages about our product, such as good insulation, low wear lose, good corrosion resistance, high mechanical strength, high density and hardness, what’s more, it has so long service life that can help to save some money for you. Our product of ceramic pigtail guide in electrical ceramics are widely used in many applications, such as textile machinery, twisting machinery, knitting and weg machinery, electronic wire feeder, refractory and structural ceramics, spinning machinery, electronic cutters, air jet mill.

Specifications

1.With smooth surface
2.Long working life
3.High quality with competitive price
4.Fast delivery time

Type: Pigtails, slit guide, hook guide, traverse guide etc
Color: white, yellow, milk white, pink, black, green, etc
Raw material: zirconia, alumina,
Size can be depend on your drawings

Material:95% alumina ceramic

Performance
Item Index Unit Steatite ceramic 95 Al2O3 96 Al2O3
Physical Characteristics Bulk density g/cm3 2.7 3.6 3.6
Water absorption % 0 0 0

Mechanical Characteristics		 Flexural strength Mpa 145 320 340
Hardness Vickers Gpa 5.7 12.2 13.5
Elastic modulus Gpa 120 280 320
Poisson’s ratio - 0.21 0.22 0.23
Thermal Characteristics Linear expansion coefficient 20-5000C 10-6/0C 7.9 7.1 7.2
Thermal conductivity w/(m.k) 2.5 16 24
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78
Electrical Characteristics Dielectric constant(1MHZ) - 6.2 9 9.4
Dielectric loss angle *10-4 18 15 5
Dielectric strength *106V/m 18 12 15


Ceramic yarn guide Features:
1.natural surface
2.low friction finish
3.consistent quality
4.high strength

Ceramic yarn guide Applications:
our threadguides are wdely used in textle machine, such as Barmag Poy&Fdy(FK6-600,700,900), Murata33 F.33H and so on. we can also provide solutions toyour textile prpblems, so please contact as with freely
