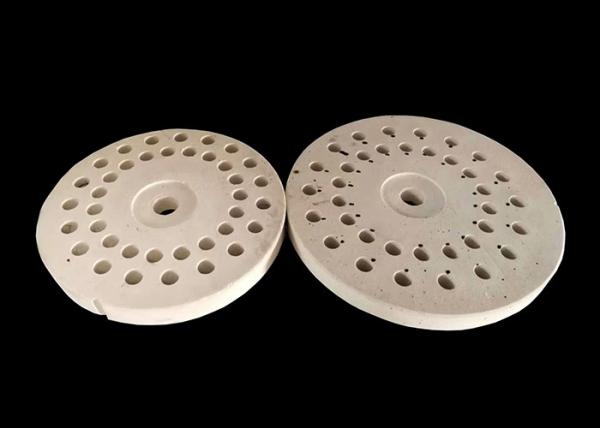

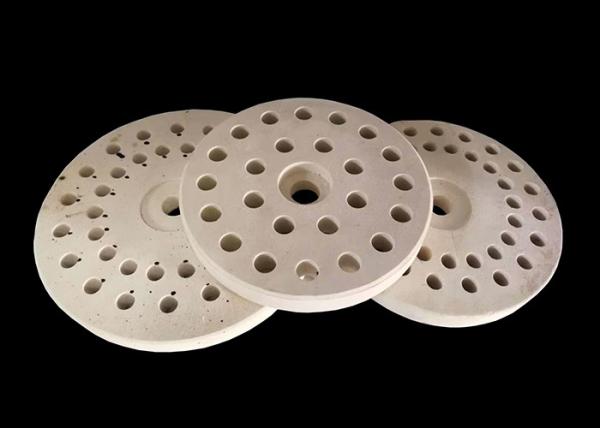

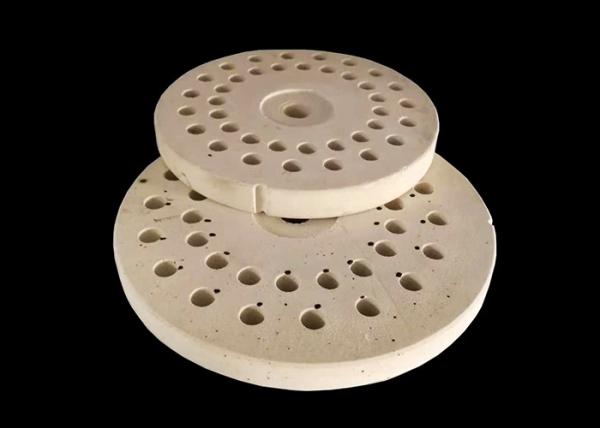

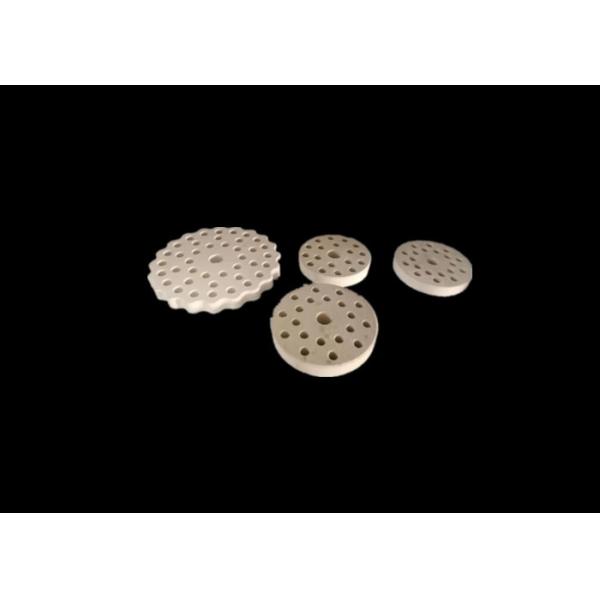

Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP241
Certification :
SGS
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Density :
2.5-2.6g/cm3
Material :
Alumina ceramic
Package :
Carton box
Color :
White, Ivory
Application :
Refractory, Industrial Ceramic
Diameter :
Customized
Description

refractory porous alumina ceramic disc for radiant heater

1.Material data

Name Alumina Dense Cordierite Porous Cordierite Cordierite-Mullite Mullite Corundum mullite
Density(g/cm3) 2.0~2.3 2.1 ~2.5 1.5 ~1.9 1.8~2.3 2.0 ~2.5 2.3 ~2.7
Coefficient of heat expansion(×10-6K-1)(20~800°C) ≤5 ≤3.5 ≤3.0 ≤3.5 ≤5 ≤6
Specific Heat (J/Kg.K)(20~1000°C) 900~1150 900~1100 900~1100 900~1150 1000~1150 1100~1300
Thermal Conductivity (W/m.k) (20~1000°C) 1.5~2.0 1.5~2.5 1.2~1.8 1.5~2.0 1.5~2.0 1.5~2.5
Impact Thermal Resistance(°C/min) ≥300 ≥300 ≥350 ≥350 ≥350 ≥300
Max. Working Tem.(°C) 1350 1300 1300 1320 1450 1550
Water absorption(%) 15-25 ≤2 15~25 15 ~25 15~25 15 ~25
Compressive strength(MPa) ≥28 ≥28 ≥25 ≥25 ≥28 ≥30
Chemical composition (%) Al2O3 55 ~65 25 ~38 28 ~38 40~52 60 ~70 70 ~80
SiO2 25~35 50 ~60 45 ~55 45 ~55 25 ~35 15 ~25
MgO 1~3 5 ~10 11 ~14 7~9 0 ~1 0 ~2
others <5 <5 <5 <5 <5 <5

2. Feature:

1). low thermal expansion
2). large specific heat capacity
3). high specific surface area
4). low pressure drop
5). small thermal resistance
6). good thermal conductivity
7). good heat-shock resisting ability

3. Application:

1)Electric appliance industry

2)Automotive industry

3)Mechanical industry

4)Engineer industry

Refractory Porous Aluminum Oxide Ceramic , Alumina Ceramic Disc For Radiant Heater
