M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
Specifications
Brand Name :
KAMTAI
Model Number :
KTCWC1
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
50000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Al2O3 :
>45%
Using temperature :
1300℃
Name :
M10 Stud Welding Ceramic Ferrule
Color :
yellow
Package :
Carton box
Sample :
For free
Description

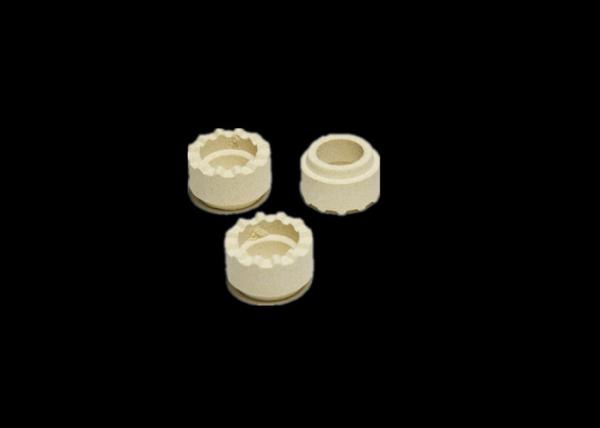

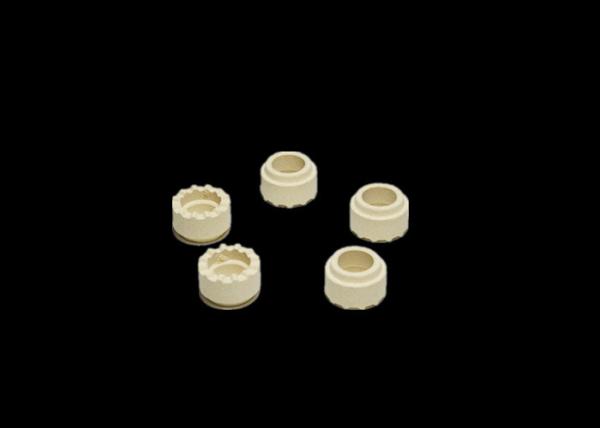

M10 Stud Welding Ceramic Ferrule

1. Description

The ceramic ferrule performs important tasks in stud welding:

It forms a chamber around the weld, thereby holding the plasma created by the arc on the weld and reducing the influence of the surrounding atmosphere.It concentrates the arc on the weld, enabling a correct welding bead to form. In addition the influence of arc blow is reduced.It reduces the cooling speed of the fused material and thereby prevents inadmissible hardening.Without the ceramic ferrule the arc would burn freely, leading to greater oxidation, spilling and pore formation in the weld. Only dry ceramic rings may be used because water dissociates in the arc creating hydrogen. The fused material can then absorb hydrogen which leads to greater pore and crack formation during cooling.

2.Advantages:

1). Excellent insulation, security, long working life.

2). High temperature resistance

3). Resistance to electric breakdown

4). Stand wear and tear

5). High strength

6). Corrosion resistance

7). Good compactness

8). HIgh hardness

M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
3.Application
M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
M10 Stud Welding Ceramic Ferrule UF Ceramic Nozzle For Tig , Temperature Resistance
