High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
Specifications
Brand Name :
KT
Model Number :
KT-STEATITE 02
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25days after payment
Packaging Details :
Carton box and plywood box
Linear expansion coefficient :
7.9
Specific Heat :
0.75
Dielectric constant(1MHZ) :
6.2
Name :
High Performance Ignition Electrodes Ceramic Igniter for Spark Plug
Material :
Steatite ceramic
Shape :
tube
Pack :
Carton box
Description

Insulating electrical steatite ceramic plug

1.Description

Our industrial ceramic parts include, tube, rod, plate, disc, wafer, ring, seal, bearing, valves, pump plunger, beam, roller, shaft, screw, washer, sleeve, hunger, spacer, holder, carrier, insulator, fixture, clamp, chuck, nozzle, guide, frame, lining, and grinding media, milling ball or beads.
These precision toleranced ceramic components or assemblies are used in a wide range of semiconductor, electronic, electrical, mechanical, chemical, automotive, textile and the other industrial engineering applications, due to their extreme hardness, more resistances to wear, heat, corrosion, high electric insulation, and low thermal expansion.

2.Performance For Industrial Ceramic

Item Unit Steatite ceramic 95 Al2O3 96 Al2O3
Physical Characteristics Bulk density g/cm3 2.7 3.6 3.6
Water absorption % 0 0 0
Mechanical Characteristics Flexural strength Mpa 145 320 340
Hardness Vickers Gpa 5.7 12.2 13.5
Elastic modulus Gpa 120 280 320
Poisson’s ratio - 0.21 0.22 0.23
Thermal Characteristics Linear expansion coefficient (20-5000C) 10-6/℃ 7.9 7.1 7.2
Thermal conductivity w/(m.k) 2.5 16 24
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78
Electrical Characteristics Dielectric constant(1MHZ) - 6.2 9 9.4
Dielectric loss angle *10-4 18 15 5
Dielectric strength *106V/m 18 12

15

3. Features

-Heat resistance

-Wear resistance

-High strengh
-Good insulation
-Used in all electric products, electric heating products and wear resistant machinery parts.

-OEM, ODM and OBM are welcomed

Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength,

good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates,

ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.

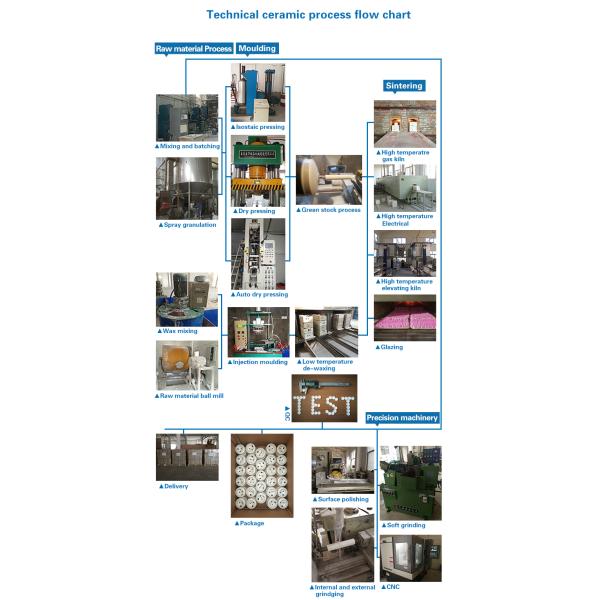

We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc.

4. Application

Electric Ceramic Connector is widely used in high temperature enviroment, kinds of connection terminal space of severe demand.

High Performance Ignition Electrodes Ceramic Igniter For Spark Plug In White Color
