Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP-1-R131
Certification :
SGS
Place of Origin :
CHINA
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
15000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Bulk Density :
>3.7g/c,m3
Tensile Strength(Nrmal Temperature) :
≥16Mpa
Bending Strength(Nrmal Temperature) :
3.5*10kg/cm2
Impact toughness :
≥3.8
Shape :
Square
Material :
Alumina ceramic
Package :
Carton box
Description

Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate

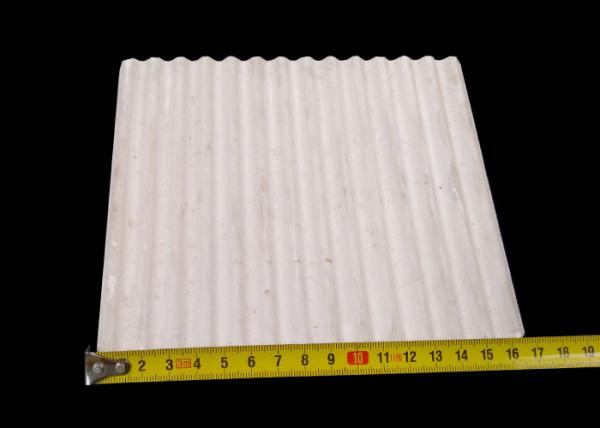

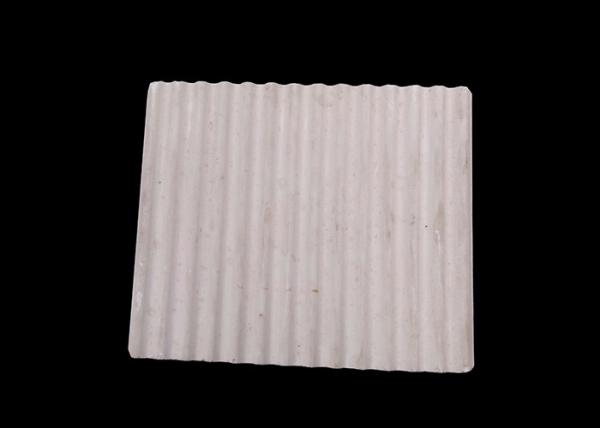

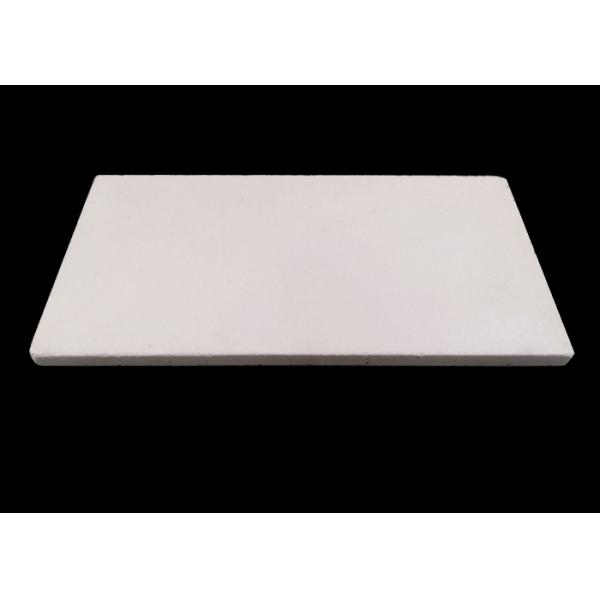

Alumina Ceramic plate

1.Product description

We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics.

2.Main Properties.

Performance 95Grade 99Grade
Bulk Density ≥3.7g/cm3 ≥3.8g/cm3
Tensile Strength(Nrmal Temperature) ≥160mpa ≥190mpa
Bending Strength(Nrmal Temperature) ≥280mpa ≥310mpa
Modulus of Elasticity 3.5*10kg/cm2 3.6*10kg/cm2
Modulus of Friction 0.06-0.1 0.06-0.1
DC Breakdown Strength ≥25 kv/mm ≥30 kv/mm
Rigidity (HV)or (HRA) 1650mpa or≥75 1650mpa or ≥80


1. High hardness.

2. High heat resistance : Alumina ceramic has excellent thermal stability,which means that it is

widely used in areas where resistance to high temperatures is essential.

3. Good wear resistance : Alumina ceramic is the material of choice for alumina wear parts.

4. High electrical resistivity : Alumina is an electrically insulating material.

5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and

alkaline solutions.

6 Good chemical stability of alumina leads to high corrosion resistance.

7 high insulation/puirty/refactory

4.Application

MGC: Machinable glass ceramic have the following applications:
a) Electrical or thermal insulator
b) Structural components
c) Semi-conductor processing
d) Electrical and opto-electronic equipment
e) Many other uses.

Heat Resistant Aluminum Oxide Ceramic 95% 99% 99.5% Al2o3 Alumina Ceramic Plate
