High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP24-1
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Alumina ceramic disc
Material :
Alumina ceramic
Max using temperature :
1350℃
Thickness :
15-16mm
Diameter :
Customized
Hole size :
8-10mm
Application :
Industrial Ceramic
Feature :
High Temperature Resistance
Description

Refractory high temperature resistance alumina ceramic disc

1. Description

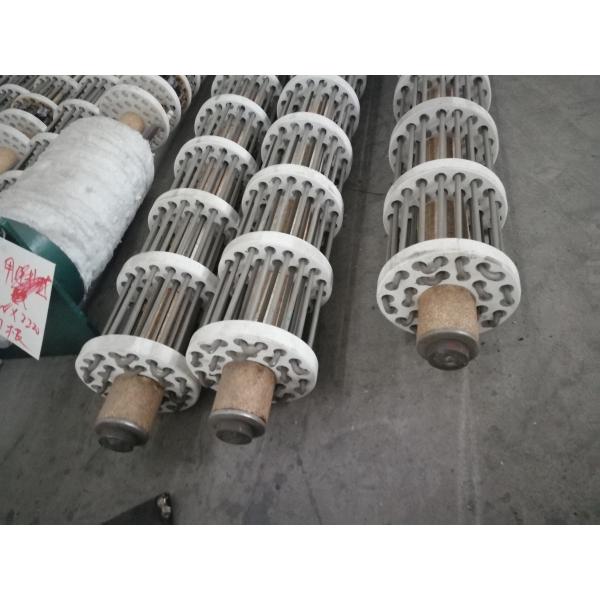

This alumina ceramic disc is used for heating in high temperature kiln, it can work at 1300℃.Commonly customer will use heating wire with the alumina ceramic disc, and then heat in kiln,

Alumina ceramic is widely used in heating application, because alumina ceramic has many advantages such as high temperature resistance, high wear resistance.We take its advantages of high temperature resistance , and apply it into many industry. It can be used for long time. Also it is economic material.

We can customize according customer's drawing.

2.Specification

High alumina ceramic disc for radiant heater

Unit
Content of al2o3 % >70%
Density g/cm3 2.50-2.6
Water absorption % 8-9
Bending strength MPa 55-60
Thermal Expansion coefficient(20-1000C) 1/K 6*10-6
Young modulus of elasticity GPa 80
Using limit C 1350
Resistance to temperature change performance Very good

SiO2 18% ,AI2O3 80%,R2O 1%,RO 1%

Compression strength>100kg/cm2
2kg softening point 1350C
Refractoriness 1750C
Max working temperature:1250C

3. Our Advantage

1. We will supply with the best price in 24 hours.

2. We will supply with all information to u ,about package, weight,

3. High Presion per special request

4. We can communicate with u by Fluently and professional Enlish .

5. For all products u buy, Our product's warranty is for 2 years. For product problem, u can contact with us any time.

High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness

High Strength Aluminum Oxide Ceramic Disc With 15-16mm Thickness
