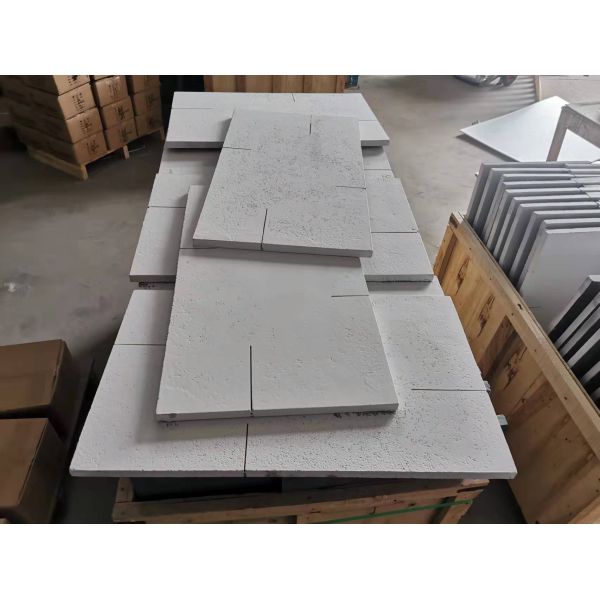

Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
Specifications
Brand Name :
KAMTAI
Model Number :
KTRKF1000
Certification :
ISO
Place of Origin :
CHINA
MOQ :
200 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
5000PCS/MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
PLYWOOD BOX AND PALLET
Color :
Black
Density :
2.75g/cm3
Brand Name: :
KT
Feature :
Good thermal shock resistance
apparent porosity: :
25
Usage :
Kiln
Shape :
Plate
Raw material :
silicon carbide powder
Description

SILICON CARNIDE PLATE

1. Description

The material of siliconized silicon carbide has series of basic superiority and characteristic such as high strength,extreme hardness,wear resistance,high temperature tolerance,corrosion resistance, oxidation resistance thermal shock resistance,high thermal conductivity,low coefficient of thermal expansion,creep resistance under high temperature and so on.Many products can be made from it such as beams,rollers,cooling air pipes,thermal couple protection tubes,temperature-measuring tubes,sealing parts,and special shaped parts.

2. Specifications

Chemical Composition SIC ≥ % 90
Max. Service Temp ºC 1400
Refractoriness ≥ SK 39
2kg/cm2 Refractoriness under load T2 ≥ ºC 1790
Modulus of Rupturt at room temp ≥ Kg/cm2 500
Modulus of Rupture at 1400ºC ≥ Kg/cm2 550
Compressive strenght ≥ Kg/cm2 1300
Thermal Expansion at 1000ºC % 0.42-0.48
Apparent Porosity % ≤20
Bulk Density g/cm3 2.55-2.7
Thermal Conductivity at 1000ºC Kcal/m.hr.ºC 13.5-14.5

3.Features:

• Excellent energy savings.

• Lighter weight and higher load capacity.
• Excellent distortion resistance at high temperature.
• High thermal conductivity
• High Young's modulus
• Low thermal expansion coefficient
• Extremely high hardness
• Wear resistant

4. Application:

• sanitary ware

• Kiln furniture crucibles

• glass panel industries

• Sliding bearings

• glost firing of tableware.

• Heat exchangers

• Burners

• Wear parts (thread guides)

Silicon SiC Ceramic Carbide Plate 2.75g / Cm3 High Strength
