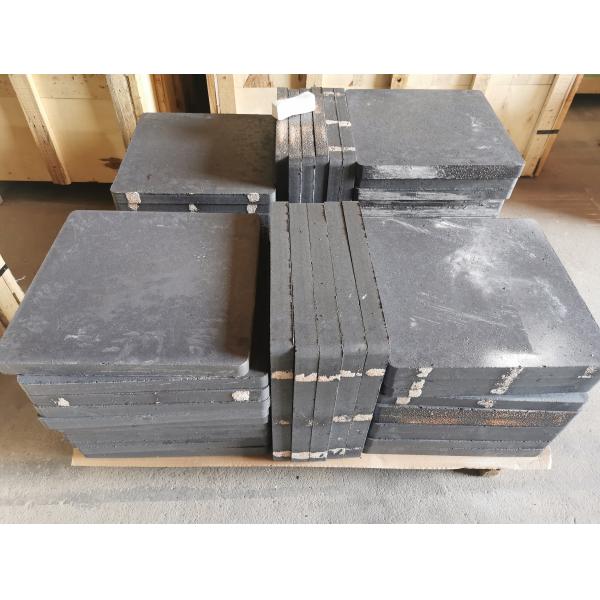

Refractory Silicon Carbide Sic Plate Wear Resistant For Ceramic Firing
Refractory Silicon Carbide Sic Plate Wear Resistant For Ceramic Firing
Refractory Silicon Carbide Sic Plate Wear Resistant For Ceramic Firing
Refractory Silicon Carbide Sic Plate Wear Resistant For Ceramic Firing
Specifications
Brand Name :
KAMTAI
Model Number :
KTRKF100
Certification :
ISO
Place of Origin :
CHINA
MOQ :
200 PCS
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
5000PCS/MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
PLYWOOD BOX AND PALLET
Place of Origin: :
JIANGSU ,CHINA
Shape :
Plate
Material: :
SIC
Application :
Industrial Furnaces
Density :
2.75g/cm3
SiC Content (%) :
90
Using temperature :
1400℃
Raw material :
silicon carbide powder
Description

Advanced Refractory kiln furniture pottery use Silicon carbide kiln shelves

1. Description

Silicon carbide plate used the high purity silicon carbide(SIC) and industrial silicon powder as the primary materials.Shaped by vibration,made by high sintering.

2. Characteristics

Good thermal conductivity
Good high temperature strength
Wear resistant and erosion resistant
Good thermal shock resistance
Good corrosion resistance
Good oxidation resistance

Suitable For

1. Non-ferrous metal smelting industry,ceramic,enamel and cement rotary kiln mouth, as well as glass annealing furnace and various kind of high temperature furnace.

2. Blast furnace lining,the lining of aluminium electrolytic bath,glass tank,structural ceramics,sanitary ceramics,domestic ceramics,electrotechnical porcelain refractory material, sinter powder metal industry.

3. Industrial ceramics bearing plate burning,pushing board, sagger; muff plate of annealing furnace;lining and ignitor of CFBB; lining of garbage incinerators,heat treatment electric heating furnace,soaking pit furnace etc.

3. Relevant Recommendation:

Silicon Nitride Ceramics
Oxide bonded SiC (OSIC)
Recrystallizde SiC (Re-SiC)
Reaction Bonded SiC (SiSiC)

4. Specifications

Chemical Composition SIC ≥ % 90
Max. Service Temp ºC 1400
Refractoriness ≥ SK 39
2kg/cm2 Refractoriness under load T2 ≥ ºC 1790
Modulus of Rupturt at room temp ≥ Kg/cm2 500
Modulus of Rupture at 1400ºC ≥ Kg/cm2 550
Compressive strenght ≥ Kg/cm2 1300
Thermal Expansion at 1000ºC % 0.42-0.48
Apparent Porosity % ≤20
Bulk Density g/cm3 2.55-2.7
Thermal Conductivity at 1000ºC Kcal/m.hr.ºC 13.5-14.5
Refractory Silicon Carbide Sic Plate Wear Resistant For Ceramic Firing
