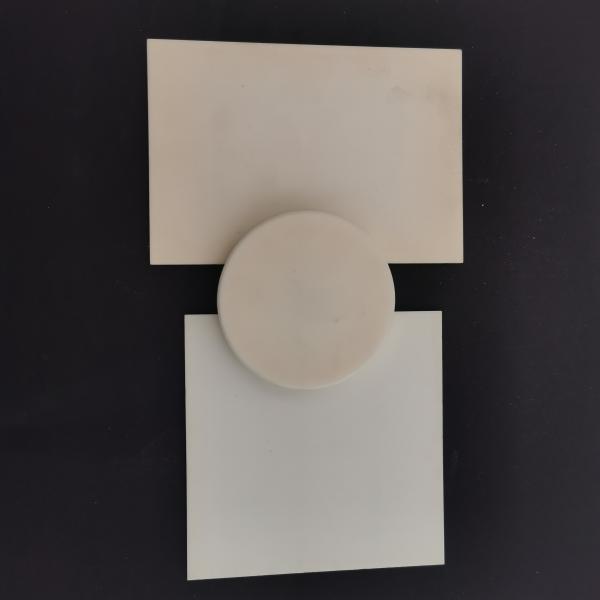

Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-320
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
99% al2o3 plate with good heat resistance and effective cost
Color :
Ivory white
Size :
Cutomize
Package :
Carton box
Density :
3.9g/cm3
MOQ :
1000PCS
Description


High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance

1.Aluminum oxide ceramic plates have a wide variety of applications:
• Alumina plates are hard enough to become armor for personnel or vehicles.
• The corrosion resistivity of alumina plates makes them a great material for the chemical industry.
• Used as a material for industrial furnaces due to its ability to maintain its hardness at high temperatures.
• Used for making parts for CVD thin films, ion implants, photolithography, and semiconductor parts.
• In traditional industries, alumina ceramics are ideal for products such as injector tubes, gas nozzles, and insulators.

2.Technical Data

Item
Unit
Zirconia ceramic
99% alumina ceramic
96% alumina ceramic
95% alumina ceramic
steatite ceramic
Mullite ceramic
cordierite ceramic
Bulk density

g/cm3
6
3.8
3.7
3.6
2.8
2.2
2.3
Water absorption

%
0
0
0
0
0
12
12
Thermal Conductivity
(W/m.k)
10
19-30
16-28
14-24
2-3
2-6
1.3-1.8
Resistance to thermal shock, Minimum
TKε
70
150
140
140
80
150
300
Withstand voltage, Minimum
KV
15
20
18
18
20
25
-
Flexural strength
Mpa
1000
300
280
240
120
120
30
Sinterring temperature
℃
1500
1670
1600
1600
1250
1250
1250
Maximum working temperature
℃
1200
1500
1200
1200
800
1000
1000


Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
