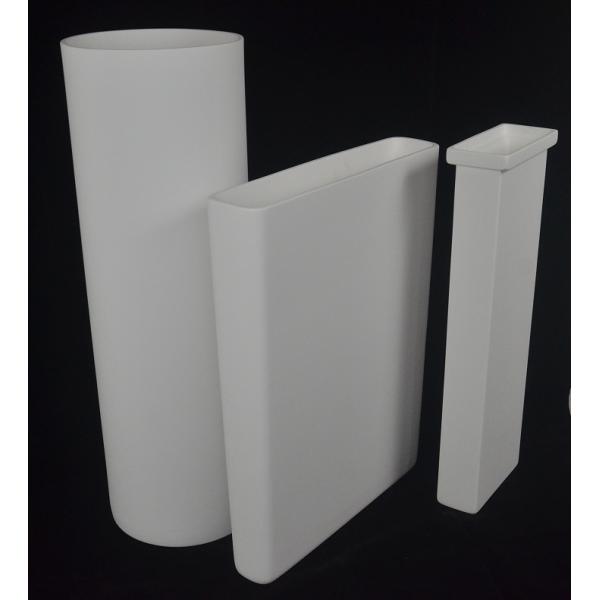

Porous Electrolytic Ceramic Diaphragm in Chrome Electroplating
Porous Electrolytic Ceramic Diaphragm in Chrome Electroplating
Porous Electrolytic Ceramic Diaphragm in Chrome Electroplating
Porous Electrolytic Ceramic Diaphragm in Chrome Electroplating
Porous Electrolytic Ceramic Diaphragm in Chrome Electroplating
Porous Electrolytic Ceramic Diaphragm in Chrome Electroplating
Specifications
Brand Name :
KAMTAI
Model Number :
KTALC100
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
500PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Ceramic Diaphragm
Material :
99% Alumina ceramic
Color :
White
Size :
500*400*80mm
Shape :
Box
Type :
Ceramic Box
Acid fastness :
99%
Grain size :
0.5~2um
Description

Alumina Ceramic Diaphragm in Chrome Electroplating

1. Description

Alumina Ceramic diaphragm is Used in decorative chromium and hard chromiumplating to lift impurities. In the production of decorative chromium and hard chromium, due to workpiece cleaning dirtyreasons, making bath cationic impurities in gradually increasing, impurities will result in too much chrome plating color andperformance degradation even scrapped the plating, electrolytic treatment of plating liquid and power consumption for a longtime. Ceramic diaphragm electrolytic plating solutions can effectively remove impurities in the electrolyte captions, thus improving plating quality of products, extending the life of plating.

Product specifications:
1, 400mm× 500mm × 80mm (upper mouth 390mm ~ 400mm height 485mm ~ 500mm width 80mm)
2, 160mm × 60mm × 520mm (flange 180mm× 80mm × 15mm,body 160mm × 60mm× 515mm)
3, diameter 210mm ~ 215mm, height 650mm or 560mm or 800mm
Note: 1) In order to ensure the electrolysis effect and strength of the product, the wall thickness of the product is designed to be about 5-7mm thick.

Using area of Alumina ceramic Diaphragm

Electrolytic ceramic pots is mainly used in the following two aspects in the electroplating industry.

1.Reducing Trivalent Chromium in Coarse Solution by Electrolytic Redox principle.

2.Used in decorative chromium and hard chromiumplating to remove impurities

3.Specification of Alumina Ceramic Diaphragm

Water absorbtion >40
Grain size 0.5-2 μm
Breaking strength > 20Mpa
Acid fastness >99%
Fastness to alkali >94%
Size 400*500*80mm,230*80*630mm
160*60*530mm
φ210*800mm,φ210*650mm,φ210*560mm
