4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
CM
Packaging Details :
Plywood case on pallet Refrigerant Filling Machine Split Sub-package Refrigerant Charging Machine
Supply Ability :
50 Unit/Units per Week
Price :
$6,800.00/units 1-4 units
Model Number :
CM20A
Certification :
CE ATEX
Condition :
New
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Weight (KG) :
120
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Warranty of core components :
1 Year
Core Components :
Motor
Type :
refrigerant charging machine
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Filling rate :
4kg/min
booster pump power :
1/2 HP
vacuum pump flow :
4L/s
liquid offer connector :
1/2"
liquid out connector :
1/4"
size of scales :
360mm(L)*360mm(W)*120mm(H)
Refrigerant :
R22/R410A/R407C/R134A
outer size :
700mm(L)*500mm(W)*1750mm(H)
Workstations :
1(3 workstations optional)
Port :
Shanghai
Description

Single Station Commercial Refrigerant Recovery Machine Oil Less R404A MO99

single station refrigerant split charging machine oil less R404A MO99 refrigerant recovery machine

Product Description

CM8800 Refrigerant split charging machine

For transferring refrigerant from ISO tank or 400-1000L tank to 12L to 60L tank.

Function:
1. Vacuum Separately: vacuum the gas from the recovery tank.
2. Pump out/Recharge: Pump out the store tank and recharge into a certain amount of refrigerant.
3. Recharge: Recharge a certain amount of refrigerant into the store tank with refrigerant already.

Features:
1. Adopt refrigerant split charging special use oil-less booster pump, suit for R134a/R22/R410A etc.
2. Integrates multi-functions: recharge, pump out & recharge and vacuum.
3. High accuracy to 0.5%, and resolution be 10g.
4. Without refrigerant loss in flexible shaft in refrigerant split charging process.
5. High vacuum speed,standard device with 4L/s vacuum pump.
6. Overall defense function.
7. High split charging speed to 2.5kg/min

Application:

1. Transferring refrigerant from ISO tank or 400~1000 tank to 12L to 16L tank.

2. Integrating functions of vacuum, recharging and pump back.

CM8800 Refrigerant Split Charging Machine Specifications
Booster Pump Power
1/2HP
Vacuum Pump Flow
4L/S
Liquid offer Connector
1/2'' Liquid out Connector: 1/4''(standard), 3/8'', 1/2 ''optional
Size of Scales
360mm(L) *360mm(W)*120mm(H)
Weight Range of Scales
40kg(standard), 100kg, 150kg optional
Outer Size
700mm(L) * 500mm(W) * 1750mm(H)
Package Weight
120kg
Package Size
750mm(L) * 620mm(W) * 1840mm(H)

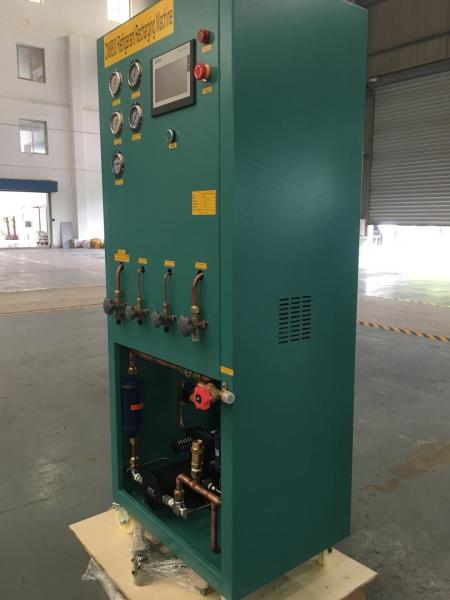

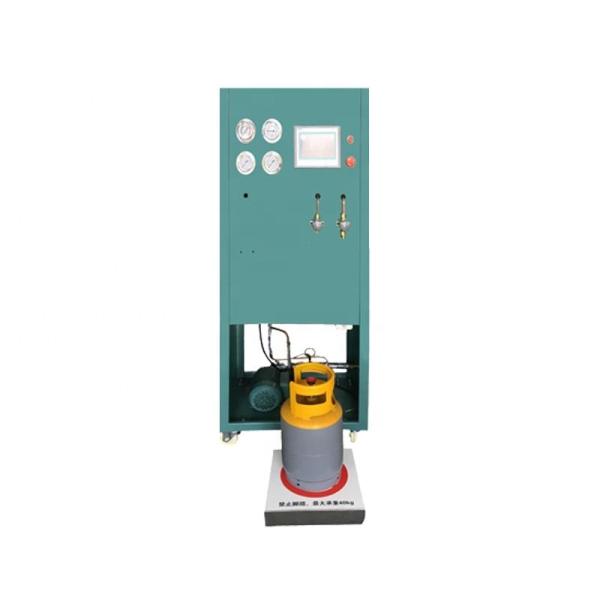

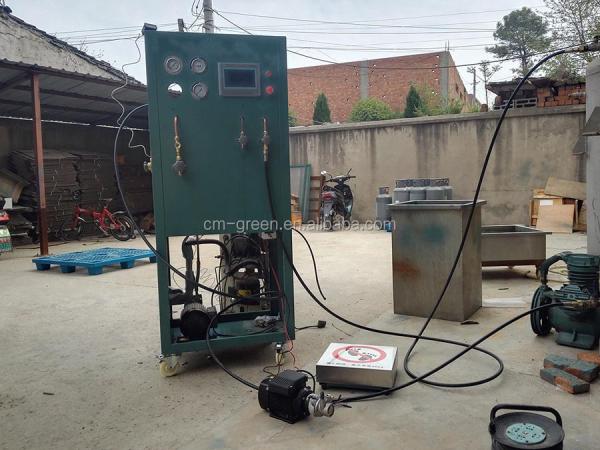

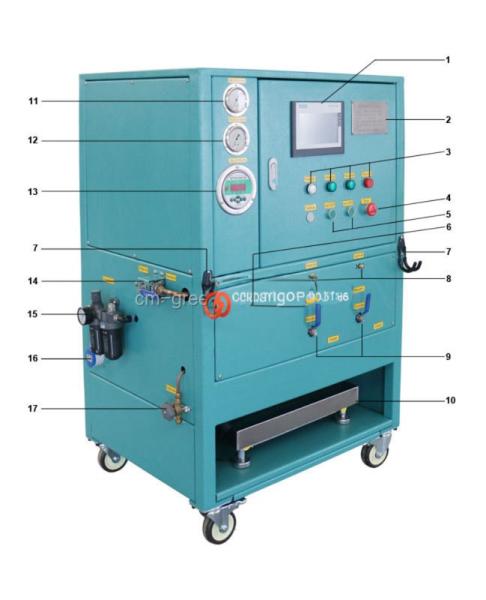

Detailed Pictures

4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
Packing & Delivery
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed
4kg/Min Filling Rate MO99 Refrigerant Reclaim Machine With High Split Charging Speed

Packing: carton, pallet, wooden case.

Delivery time: within 7-30 days after receiving the payment.
