coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
Specifications
Place of Origin :
China
Brand Name :
CM
Certification :
CE
Packaging Details :
1 unit carton
Supply Ability :
1000 Unit/Units per Month
Price :
$30,000.00/units >=1 units
Model Number :
CM8600
MOQ :
1 Unit
Condition :
New
Applicable Industries :
Manufacturing Plant
Showroom Location :
United States
Video outgoing-inspection :
Not Available
Machinery Test Report :
Not Available
Warranty of core components :
1 Year
Core Components :
PLC, Pump
Type :
COMPRESSOR
Warranty :
1 Year
After-sales Service Provided :
No overseas service provided
Refrigerant :
r134a,r410a,r407c,r22
Color :
Green,yellow
Product name :
refrigerant recovy machine
compressor :
2 HP
Net weight :
280KG
Marketing Type :
Hot Product 2019
Port :
Shanghai
Description

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

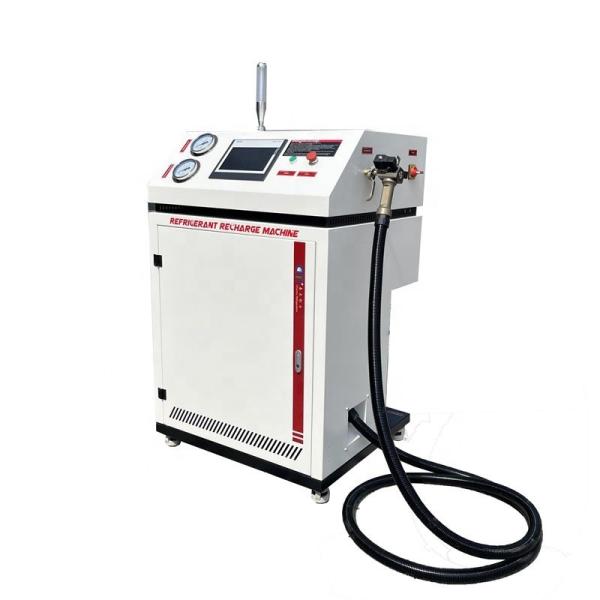

CM86 Refrigerant Charging System

CM86 production line freon filling equipment series is specially designed for refrigeration equipment production line,it's suitable for various application which includes chiller,air condition,

refrigerator or beer machine

The entire system was controller by Siemens PLC technology with full automatic operation. It featured for its high speed of charging, high accuracy. multiple function etc. CM8600 production line freon filling equipment are compatible with refrigerants of CFC,HFC,HC,etc. The production line freon filling equipment can also be customized according to your special requirements.

Features

(1) Full Automatic Control system, with the most accurate data processing capacity;

(2) Colorful touch screen, with smart control panel in both English and Chinese
(3) Suitable for various refrigerant,such as R134a, R22,R410a ,R407c,R32,R404a,R1234yf etc.
(4) Equipped with high resolution sensor flowmeter;
(5) Have the functioning of detecting vacuuming and leakage for workpiece;
(6) Efficient for improving production and charging quality;
(7) The barcode reader can be optional, save more than 40 different product items;
(8) Smart refrigerant charging gun to ensure the vacuuming efficiency, refilling accuracy and reliability;

Specification

Suitable Refrigerant
R134A.R404A.R22.R410A.R290 etc.
Working pressure
1.8MPa-2.8MPa
Refrigerant Charging Accuracy
±0.5%
Charging Speed
20g/s-200g/s
Vacuum Degree
≤5Pa
Charging range
0-50KG adjustable
Vacuum speed
8L/S
Pre-set channel
100
Gauge meter
Mass flow meter
Vacuum inspect
10-300Pa
Charging Gun Connection
Hansen 1/4"&3/8"
Length of filling pipe
3-10M
Power and voltage
380V 50Hz 3Ph & 220V 50Hz 1Ph
compressed air pressure
6-8Bar
Product Dimension
950W*750D*1450Hmm
Net weight
250kg

Optional Equipment

Pre-Vacuum System

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

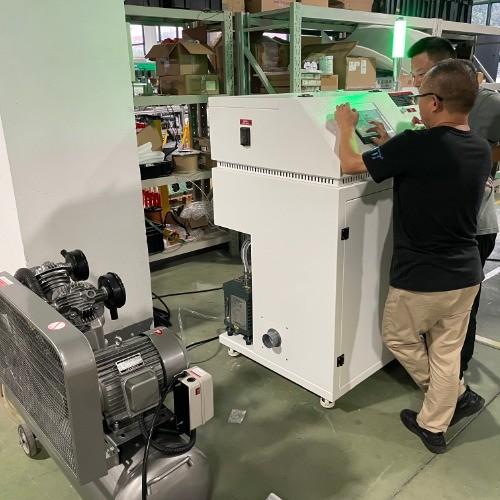

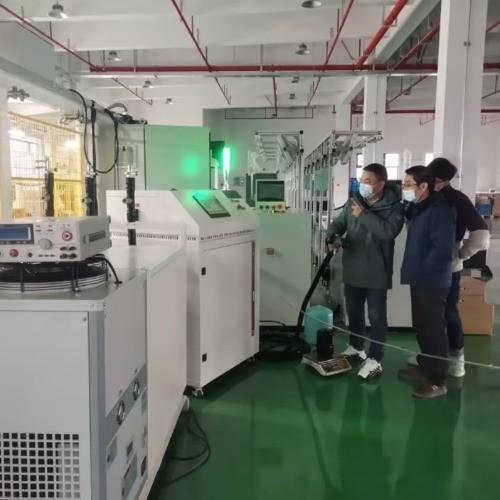

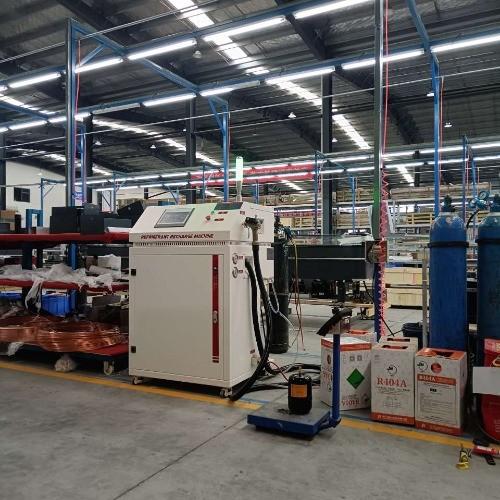

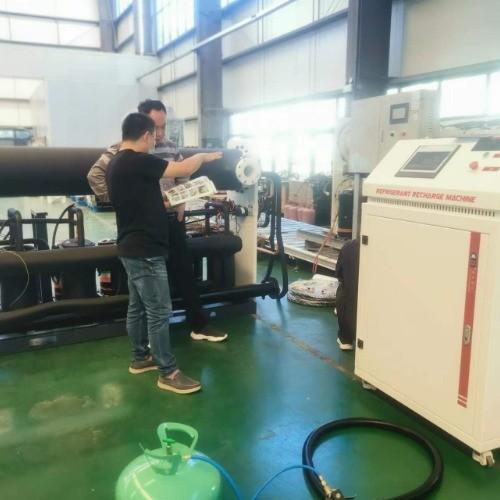

Customer Project

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging stationcoolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging stationcoolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging stationcoolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

Exhibition

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station

coolant liquid ac refilling machine automatic R134a R22 refrigerant charging machine ac charging station
