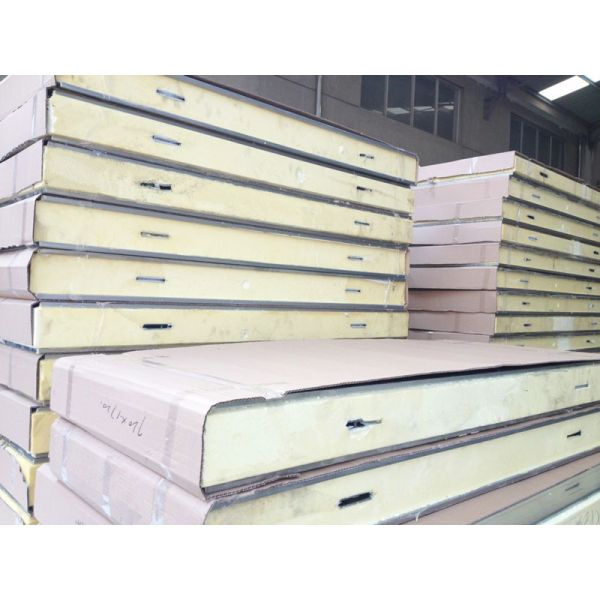

100mm Polyurethane Insulation Panels , 3 Layers Cold Room Sandwich Panel
100mm Polyurethane Insulation Panels , 3 Layers Cold Room Sandwich Panel
100mm Polyurethane Insulation Panels , 3 Layers Cold Room Sandwich Panel
100mm Polyurethane Insulation Panels , 3 Layers Cold Room Sandwich Panel
100mm Polyurethane Insulation Panels , 3 Layers Cold Room Sandwich Panel
100mm Polyurethane Insulation Panels , 3 Layers Cold Room Sandwich Panel
Specifications
Brand Name :
Xin Xing Yuan
Model Number :
100mm
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 ㎡
Price :
Negotiation
Payment Terms :
L/C , T/T
Supply Ability :
12000 ㎡ / Month
Delivery Time :
15 Work Days
Packaging Details :
Standard Export Packing
Product Name :
pu sandwich panel
Specification :
50 / 75 / 100 / 150 / 200mm
Colors :
Ivory
Density :
38 ~ 42 Kg / m³
Structure :
3 layers
Material :
PU , Color Steel
Description

100mm Camlock Polyurethane Panel Cold Room Insulation Sandwich Panel

Advantages Of PU Sandwich Panel PU Wall Sandwich Panel :

  1. Available Panel Thickness : 50mm , 75mm , 100mm , 120mm , 150mm , 200mm
  2. Surface of Panels : Pre - painted white hot galvanized steel sheet , aluminum sheet or stainless steel sheet .
  3. Panel Available Width : 500mm - 1200mm
  4. Panel Available Length : 2000mm - 12000mm
  5. PU Density : 42Kgs / m3
  6. PU Density: 42KGS / m3
  7. Heat Transfer Quotients : ≤ 0.022 Wm2 * K
  8. Pressure : ≥ 0.10Mpa

Specification :

Steel thickness 0.2 ~ 0.7mm
Panel thickness 50mm / 75mm / 100mm / 150mm / 200mm
Thickness 50 / 75 / 100cm
Effective width 1000mm
Length According to customer ' s request , less than 11.8m
Materials Inner is PU , two sides are color coated steel sheets
Structure

3 layers :

  • Upper layer is steel sheet,
  • The inner layer is PU sandwich
  • The bottom layer is also steel sheet
Density 42 ( kg / m³ )
Lifetime 20 years
Characters Light in weight , heat insulation , fireproof and waterproof , environmental
Application the large size factory buildings , storages , exhibition halls , gymnasiums
Packing Packed by shipping Container or according to your demands
