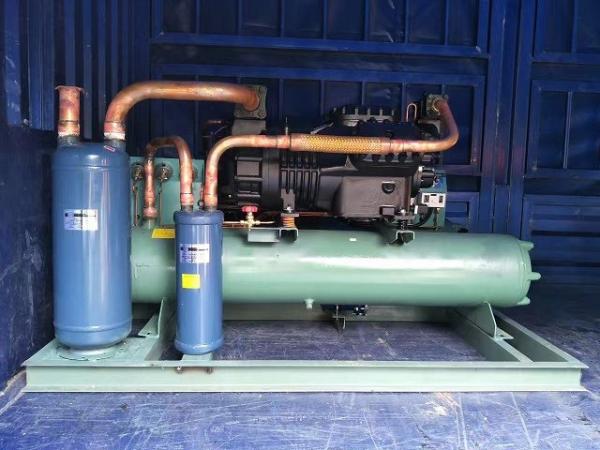

Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Copeland Refrigeration Condensing Unit 10 HP Water Cooling For Meat Freezer
Specifications
Brand Name :
Gaoxiang
Model Number :
GXN10CBZG
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiation
Payment Terms :
L/C , T/T
Supply Ability :
200 Pcs / Month
Delivery Time :
20 ~ 30 Days
Packaging Details :
Standard Export Packing
Type :
10 hp condensing unit
Cooling System :
Water Cooling
Power Source :
Electric Motor
Usage :
Meat Freezer
Cooling Type :
Water Cooled
HP :
10HP
Description

10HP Copeland Water Cooling Refrigeration Condensing Unit For Meat Freezer

Product Features :

1 . Using Copper pipe aluminum condenser or high efficient shell condenser ,
Quick heat exchange with long time .
2 . Using external rotor air cooler ( except FNV type ) , Low noise , high efficiency ,
and good appearance .
3 . Using domestic and foreign parts with good quality , complete specifications with
good characteristic .
4 . Complete models with wide temperatures using , and can be used widely for storage ,
cooling , ice - making , freezing , etc .

Water - Cooled Refrigeration Condensing Unit Technical parameters :

1 . Condenser Details :

Form Rated Water Flow ( m3 / h ) Connection Size
Scroll and tube Condenser 5 RC1 - 1- 1 / 2

2 . Refrigerant Capacity Of Compressor :

a . Evaporating Temperature - 5 ℃

Cooling Capacity 21357 W
Power 8282 W

b. Evaporating Temperature - 15 ℃

Cooling Capacity 13185 W
Power 6979 W

c . Evaporating Temperature - 20 ℃

Cooling Capacity 10890 W
Power 6313 W

3 . Coupling

Tube Coupling 5 / 8 〞
Suction Coupling 1 - 1 / 8 〞

4 . Overall Dimensions :

Length ( L ) 1162 mm
Width ( B ) 300 mm
Height ( H ) 673 mm

Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .

Note: 　

1 . Cooling capacity in the form is calculated when the ambient temperature is 40℃ .

2 . Configuration can be added according to customers' requirements .
