20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
20HP - 18℃ Air Cooled Condensing Unit , Cold Room Condensing Unit For Frozen Room
Specifications
Brand Name :
Gaoxiang
Model Number :
GXN20CBFZD
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiation
Payment Terms :
L/C , T/T
Supply Ability :
150 Pcs / Month
Delivery Time :
20 ~ 30 Days
Packaging Details :
Standard Export Packing
Type :
Cold Room Compressor
Structure :
Assembled
Refrigerant :
R404a
Power :
17150 W
Comperssor Type :
4GE - 23Y
Condenser Type :
Scroll & Tube
Description

20HP - 18℃ Air Cooling Refrigeration Condensing Unit For Frozen Room

Product Features :

1 . Material : Copper , aluminum , galvanized plate
2 . Aluminum foil : Hydrophilic or bare
3 . Fin type : Louver fin or flat fin or corrugated fin
4 . Copper pipe : Diameter 7mm or 8mm or 9.52mmor 12.75mm or 15.888mm , grooved or smooth tube
5 . Pitch of fins can be adjusted between 1.8- 5.8mm .
6 . Pitch of holes and pitch of rows : 25 * 21.65MM and 12.7 * 19.05MM
7 . Suitable for R134A , R22 , R404A , R407C refrigerant and so on
8 . Voltage : 220V / 1 / 50Hz and 380V / 3 / 50Hz or other type .

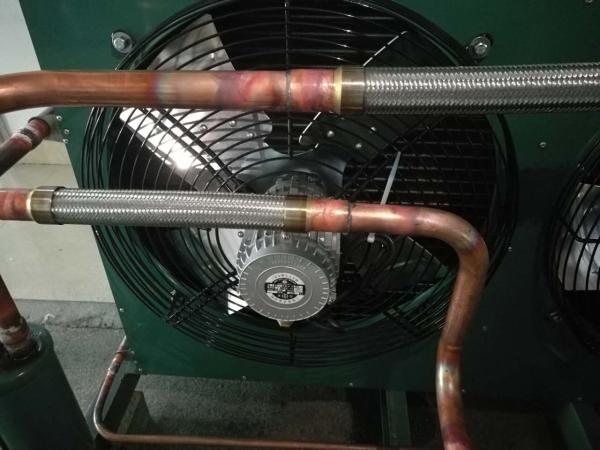

9 . Different alternative condensing fans available : Shaded pole or outer rotor fan motor .
10 . Did gas examination under 3.0Mpa air pressure to ensure the tightness .
11 . Widely used in refrigeration industry , cold room and other cooling system .
12 . We can supply products as per customized samples or drawing .
13 . Producing procedure : Tube bending , punching fin , expanding , digressing , drying

Water - Cooled Refrigeration Condensing Unit Technical parameters :

1 . Condenser Details :

Form Rated Air Flow ( m3 / h ) Connection Size
Fin Condenser 2*10820 RC 3 / 4 - 2 - 1 / 8

2 . Refrigerant Capacity Of Compressor :

a . Evaporating Temperature - 15 ℃

Cooling Capacity 29200 W
Power 17150 W

b. Evaporating Temperature - 25 ℃

Cooling Capacity 19100 W
Power 13050 W

c . Evaporating Temperature - 35 ℃

Cooling Capacity 11250 W
Power 9630 W

3 . Coupling

Tube Coupling 3 / 4 〞
Suction Coupling 2 - 1 / 8 〞

4 . Overall Dimensions :

Length ( L ) 1470 mm
Width ( B ) 1000 mm
Height ( H ) 1180 mm

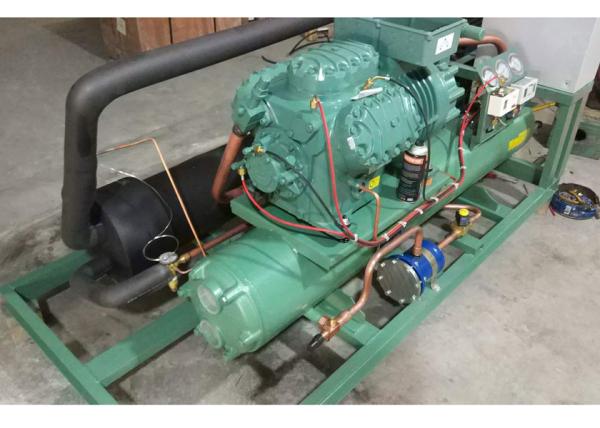

Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .

Note: 　

1 . Cooling capacity in the form is calculated when the ambient temperature is 40℃ .

2 . Configuration can be added according to customers' requirements .
