Hermetic Type 10HP Air Cooled Condensing Unit For Glass Door Walk In Cooler
Hermetic Type 10HP Air Cooled Condensing Unit For Glass Door Walk In Cooler
Hermetic Type 10HP Air Cooled Condensing Unit For Glass Door Walk In Cooler
Hermetic Type 10HP Air Cooled Condensing Unit For Glass Door Walk In Cooler
Hermetic Type 10HP Air Cooled Condensing Unit For Glass Door Walk In Cooler
Hermetic Type 10HP Air Cooled Condensing Unit For Glass Door Walk In Cooler
Specifications
Brand Name :
Gaoxiang
Model Number :
GXN10CBZG
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1Pc
Price :
Negotiation
Payment Terms :
L/C , T/T
Supply Ability :
200Pcs / Month
Delivery Time :
20 ~ 25 Days
Packaging Details :
Standard Export Packing
Product Name :
Heat Exchanger
Refrigerant :
R404a
Condenser :
Air Cooling Condenser
Solenoid Valve :
Hongsen
Payment :
30 %TT deposit , 70 % against the B / L copy
Electric Controler :
Elitech
Description



10HP Hermetic Air - Cooled Condensing Unit For Glass Door Walk In Cooler


Product Specifications :

Cooling groups are produced under ISO - 9001 : 2000 quality assurance systems . Cooling equipments which are used by production are from the world ' s leading brands with advanced technology units . Mounting is made with devices which have compancotler CNC technology . Our cooling groups are produed in accordance with the European Safety Standars and have CE labels.


Compressor Group :

We use for our cooling groups hermetic compressors. Compressors are working in nominal conditions in low noise level and are providing high cooling efficiency with a consumption of energy . Our compressor group RAL 7047 will be presented after being pre - painted and caged in galvanized steel sheet .


Condenser :

► Air cooling condenser is optimized for providing high efficiency in a striangle form and is optimized to the are flow . Heat transfer surface consists of ad inflated copper pipe and with aluminum wings on it .
► Condenser fans have European origin with high efficiency axial fan and have an IP55 electrical protection box .
► Side and intermediate mirrors of the condenser are manufactrued from aluminum sheel sheets .

Hermetic Condensing Unit Technical parameters :

Model of unit GXN10CBZG
Applicable Temp. + 5 ~ - 15 ℃
Refrigerant R404A
Power supply 380V 50Hz
Cooling capacity & Power Evaporating Temperature + 5 ℃ Cooling Capacity 28300
Power 9550
Evaporating Temperature - 5 ℃ Cooling Capacity 20700
Power 8840
Evaporating Temperature - 12 ℃ Cooling Capacity 16150
Power 8410
Cupling Discharge Cupling 5 / 8 ''
Suction Coupling 1 - 3 / 8 ''
Discharge Cupling 5 / 8 ''
Suction Coupling 1 - 3 / 8 ''
Overall Dimensions Length ( A ) mm 1100
Width ( B ) mm 900
Height ( C ) mm 980



Every Unit Configuration :

Reservoir 1Pc
Solenoid Valve 1Pc

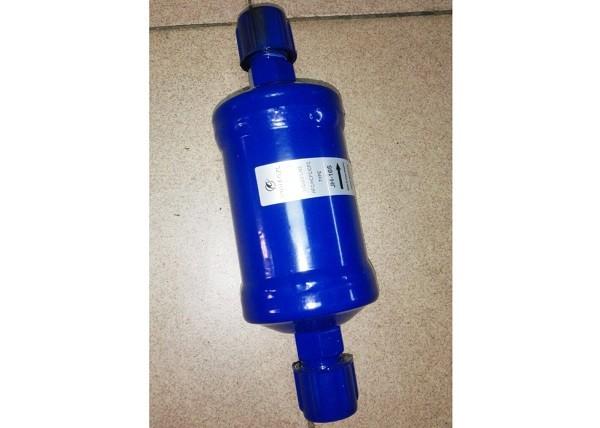

Dry Filter 1Pc
Mirror Liquid 1Pc
High and Low Pressure Controller 1Pc
High and Low Pressure Gauge 2Pcs
Copper Pipes & Insulation 1 set
Expansion Valve 1Pc
R404a Refrigerant 1 set
