Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms
Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms
Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms
Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms
Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms
Easy Install Commercial Freezer Doors , 100mm Thickness Insulated Doors For Cold Rooms
Specifications
Brand Name :
Xin Xing Yuan
Model Number :
800 * 1800 mm
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
20 Pcs / Day
Delivery Time :
About 15 Work Days
Packaging Details :
Standard Export Packing
Product Name :
Hinge Door
Material :
PU , Stainess Steel
Purpose :
Hospital Cold Storage
Density :
38 ~ 42 Kg / m³
Size :
Customized
Thinkness :
100mm
Description

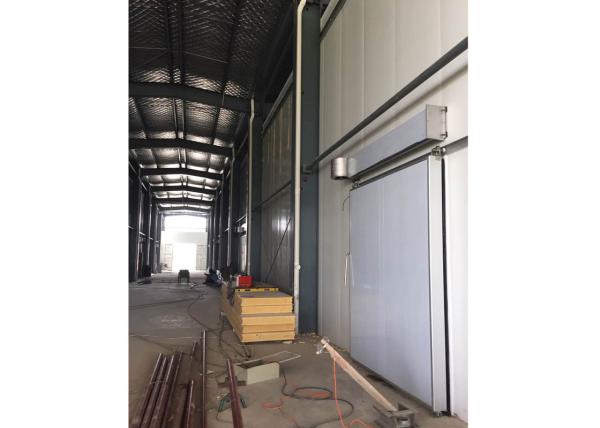

100mm Insulated Cold Room Sliding Doors For Fish Manufacturers

Sliding Doors Instructions :

Unique range of sliding doors for chiller and freezer applications 0℃ to -40 ℃. advailble in two models and four options . The doorblades are constructed from series of interchangeable panels framed in heavy gauge stainless steel edge profiles .

Products Features :

1 . Fully assambled for installation

Simple to install , easy to adjust and commission .

2 . In kit form for easy site assembly and installation

Cheaper to transport and easier to store safely on site

3 . In kit form without insulation panels

More competive as panels can be supplied from site off - cuts .

4 . Track furniture and automation only

For retro fit or clients who prefer to manufacture their own doorblades .

Products Specifications :

1 . Light to medium single leaf chiller and freezer sliding doors

Rail system Type M5 hermetic with stainless steel hangers and nylon bearings
Max Size

2400mm * 2600mm high , weight : about 250kg
Doorblade 1.5mm stainless steel edge frame with high density injected polyurethane panels 80 , 100 , 125 or 150 thick
Finishes White coated polyester , food safe or stainless steel
Gaskets Tough rubber tubular gasket for perfect sealing
Handles Pull handle and flush grip stainless steel lever handle for doors over 1500mm wide
Frames

100mm * 20mm 1.5mm stainless steel face mounted optional wrap round frames

optional stainless sheel wrap round fames
Heating 240V frame heating with optional heated floor cill

2 . Heavy duty single / bi - parting chiller and single leaf freezer sliding doors

Rail system Type M7 hermetic with stainless steel hangers and nylon bearings
Max Size 40000mm * 4500mm high , weight : about 400kg
Doorblade 2mm stainless steel edge frame with high density injected polyurethane panels 80 , 100 , 125 or 150 thick
Finishes White coated polyester , food safe or stainless steel
Gaskets Tough rubber tubular gasket for perfect sealing
Handles Pull handle and flush grip stainless steel lever handle for doors over 1500mm wide
Frames

150mm * 45mm white coated face mounted polyurethane injected

optional wrap stainless sheel round fames
Heating 240V frame heating with optional heated floor cill
