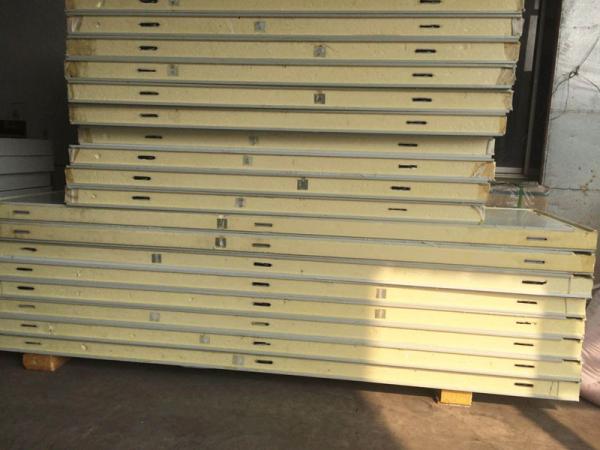

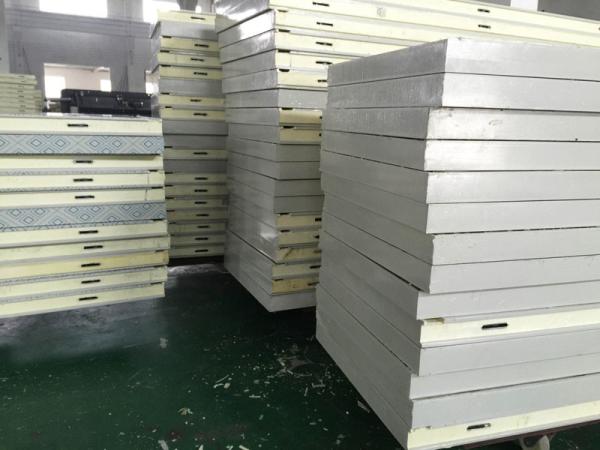

200mm Thickness PU Sandwich Panels For Quick - Frozen Food Processing

Products Introduction :

PU sandwich panels is a kind of board used for enclosing structures , which has good heat insulationand higher intensity . It can reduce the heat transmission caused by difference in the internal and external temperature , and get to maximum efficiency of freezing and refrigeration systems . Designed scientifically and easy to use . It is a new type of heat insulation material for lower construction cost . Panels are in multiple varieties and specifications to meet the need of various sites and projects .

Our brand Polyurethane sandwich panels and doors are widely used in food production , quick - frozen food processing , aquatic product processing , crop storage , pharmaceutical , purification , logistics center and so on . Now the products are distributed all over the country and export to Japan , Thailand , Korea , the Philippines , Australia , Israel , Canada , South Africa and other countries .

Procucts Features :

1. Density : PU sandwich panel is produced by injecting PU with a density of 42kg / m³ between 2 metal sheets with formed surfaces to increase durability . Polyurethane injected panels with 42 kg / m³ density , locking mechanism , proper for all kinds of refrigerated cold storage rooms ;
2. Polyurethane rigid foam : our sandwich panel is new type of polyurethane rigid foam used as an insulating material for refrigerators and refrigerated display counters . It consists of partially and fully formulated polyol blends containing all the raw materials and auxiliaries necessary for foaming ;
3. Size : All the panels produced by us are discontinuous type and locked to each other . These panels can be produced 50mm , 100mm and 150mm , widths are 980mm in standard or customized , Installation details and accessories of the prefabricated panels are predesigned , and outer surfaces can be produced with painted and galvanized metal sheets , or stainless steel metal sheets ;
4. Application : Sandwich panels are used in facades, partition walls and ceilings . The most typical applications include industrial , office and commercial buildings , sports halls , warehouses and power plants . The panels are also suitable for food industry construction and demanding clean room applications ;
5. Energy savings : PU sandwich panel insulation system is a comprehensive external wall system that ensures an extremely low air leakage for your building , to reduce heating energy needs and helps improve its energy rating .

Products Specification :
