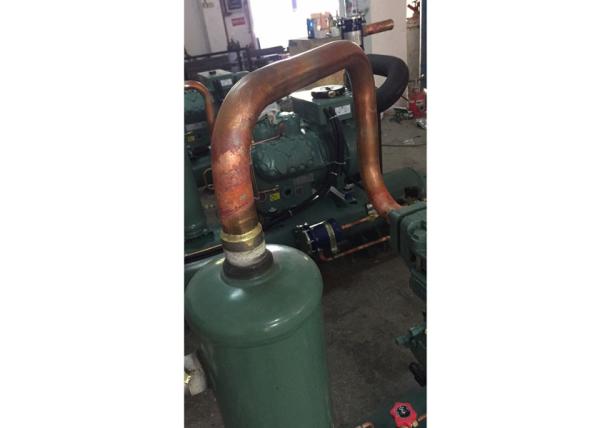

Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Copeland Refrigeration Condensing Units 5 HP Water Cooling For Glass Door Freezer
Specifications
Brand Name :
Gaoxiang
Model Number :
GXN5CQZG
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1 Pc
Price :
Negotiation
Payment Terms :
L/C , T/T
Supply Ability :
Pcs / Month
Delivery Time :
20 ~ 30 Days
Packaging Details :
Standard Export Packing
Type :
compressor condenser unit
Structure :
Assembled
Refrigerant :
R404a
Suitable for :
Hospital
Cooling Type :
Water Cooled
Compresser :
Copeland
Description


Copeland Water Cooling Refrigeration Condensing Unit For Glass Door Freezer

Product Features :

1 . Compressor unit is very reliable . It can work continuously for a very long time ;
2 . Beautiful and durable appearance design , anti - collision and rain proof ;
3 . Small space occupying , convenient for packing and transportation ;
4 . Easy installation ; Floor stand or wall hung ;
5 . Efficient and powerful fan which has big blast volume and low power consumption ;
6 . Efficient heat transfer and ultra quiet design , easy operation .

Water - Cooled Refrigeration Condensing Unit Technical parameters :

1 . Condenser Details :

Form Rated Water Flow ( m3 / h ) Connection Size
Scroll and tube Condenser 3.2 RC1 - 1- 1 / 2

2 . Refrigerant Capacity Of Compressor :

a . Evaporating Temperature + 5 ℃

Cooling Capacity 13350 W
Power 3710 W

b. Evaporating Temperature－5 ℃

Cooling Capacity 9980 W
Power 3760 W

c . Evaporating Temperature - 12 ℃

Cooling Capacity 7940 W
Power 3760 W

3 . Coupling

Tube Coupling 1 / 2 〞
Suction Coupling 7 / 8 〞

4 . Overall Dimensions :

Length ( L ) 972 mm
Width ( B ) 220 mm
Height ( H ) 726 mm

Standard configuration of units : compressor , condenser , liquid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .

Note: 　

1 . Cooling capacity in the form is calculated when the ambient temperature is 40℃ .

2 . Configuration can be added according to customers' requirements .
